Moog Sub Phatty Bass Synthesizer Product Details

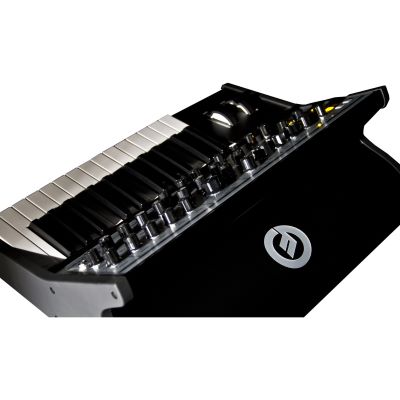

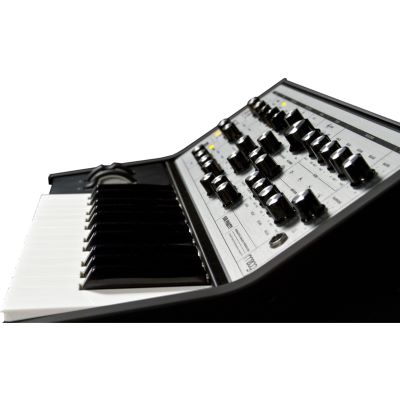

A bass synthesizer? Totally – but even more! Hands-On sound design – that is how Moog describes the focus of the Sub Phatty: 44 high quality controls make the intuitive “sound handicrafts” possible. The half-weighted 2-octaves keyboards and the handy modulation scroller make the access to the sounds of the Sub Phatty directly and uncomplicated. The Sub Phatty is a real instrument and not a “box with sounds”.
Features:
- Sound production: real analog, monophonic
- Keyboard: 25 keys, half-weighted
- Playing aids: pitch bender, modulation scroller
- Audio source: 2 oscillators with variable waveform, 1 sub-oscillator with square wave, 1 noise generator
- Oscillator frequency range: 22 Hz to 6,8 kHz
- Oscillator tuning: stable from note 18 to 116 (8`)
- Filter: Moog cascade filter (20Hz – 20kHz)
- 2 ADSR envelopes
- Modulation goals: total tone pitch, osc. 2 tone pitch, osc. waveform, filter cutoff
- Transposition: +/- 2 octaves
- Audio input: jack plug unsymmetric
- Audio output: jack plug unsymmetric, headphones output
- Presets: 4 plates, 4 presets per plate
- MIDI in/out: DIN in/out, MIDI via USB
- CV/Gate inputs: control voltages for filter cutoff, tone pitch, volume, keyboard gate
- Integrated power supply
Specs:
- Color: Black
- USB-MIDI: USB and MIDI
- MIDI Inputs: 1 Port
- MIDI Outputs: 1 Port
- Line Outputs: 1
- Number of Keys: 25
- Type of sound generation: Analogue
- Type: Synthesizer
- Theme: Keyboard Instruments
