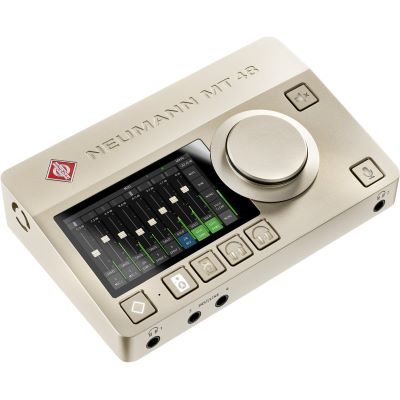

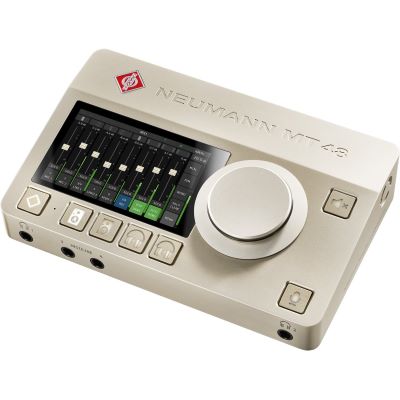

Neumann MT 48 Audiointerface

The Neumann MT 48 is an audio interface without compromise. With its huge dynamic range, first-class converters, preamps, and headphone amplifiers, it sets new standards in sound quality. Internal DSP power enables monitor mixes with sophisticated EQ and dynamics processing - always intuitively operated via touchscreen.

The MT 48 brings Neumann quality to the digital workflow. It is the first audio interface in its class to reproduce the full dynamic range of Neumann microphones, and is optimally matched to the KH-Line studio monitors and Neumann headphones. The result is an exemplary signal chain without any bottleneck: uncompromising sound quality from the microphone diaphragm to the ear.

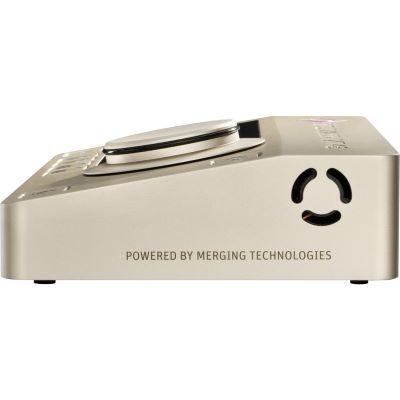

The Neumann MT 48 was developed in close cooperation with the Swiss company Merging Technologies, whose high-precision AD converters offer a tremendous dynamic range of 136 dB. This gives the MT 48 four times the resolution of comparable audio interfaces.

The Neumann MT 48 offers a full range of features for the reference-class personal studio: two extremely low-noise mic/line preamps with up to 78 dB gain, two line/instrument inputs, four monitor/line outputs, and two first-class headphone outputs, each with state-of-the-art AD/DA converters. The connection palette can be expanded via ADAT / S/PDIF and AES67; a MIDI interface is also integrated. Four separate monitor mixes can be managed directly on the device via touchscreen. On board are a fully parametric 4-band EQ and a 3-way dynamics processor (gate/compressor/limiter) per channel as well as a high-quality reverb. This gives musicians inspiring sound for top performances. And there's still plenty of DSP power ready for future developments.

Features:

• Top-class AD/DA converter with enormous dynamic range.
• Unparalleled AD-converter resolution with 136 dB dynamic range

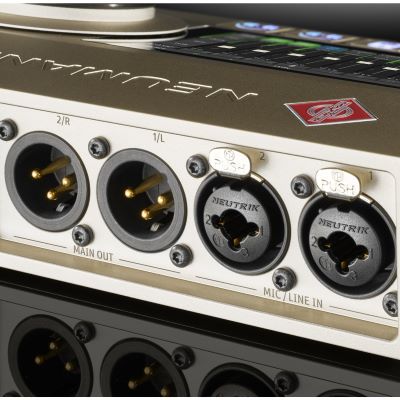

• 2 Mic/Line preamps in premium quality, 2 sound-neutral Line/Instrument inputs
• 4 line/monitor outputs

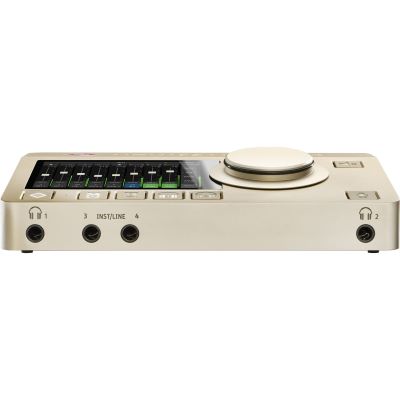

• 2 headphone outputs with ultra-low impedance and adjustable crossfeed
• ADAT / S/PDIF optical I/O, AES67, MIDI/GPIO
• Two driver outputs per input channel for pre-FX and/or post-FX recording

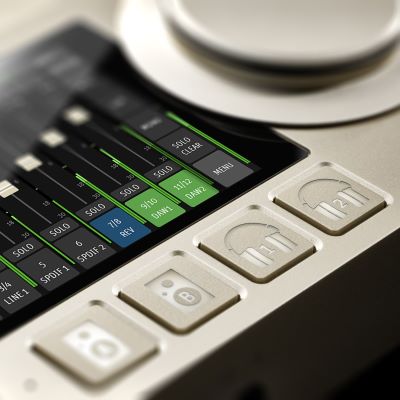

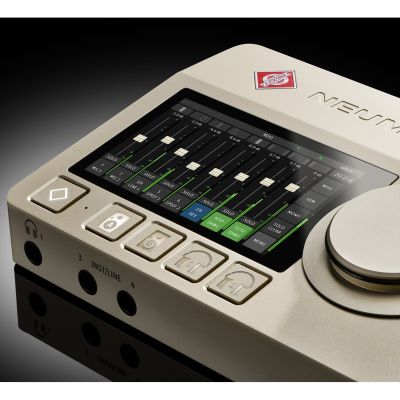

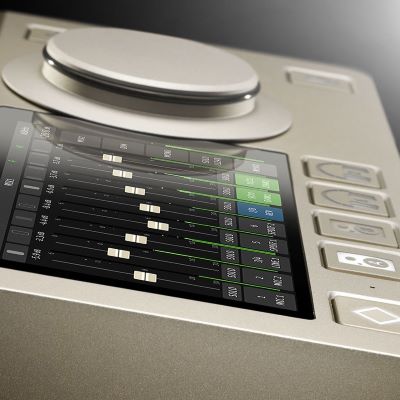

• Intuitive touchscreen user interface
• DSP processing (EQ, dynamics, reverb)
• 4 independent mixers with integrated talkback
• USB, ADAT and AES67 interfaces

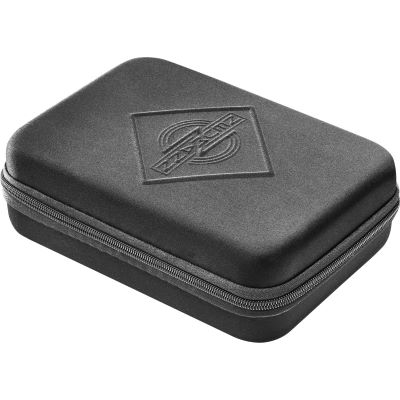

• Contents: MT 48 audio interface, soft case, EU power supply with USB-C connection cable, USB-A data cable, USB-C data cable, quick start guide, safety instructions

Specs:

• Color: White
• Rack Mountable: no
• Line Inputs: 2
• Line Outputs: 4
• Mic Inputs: 2
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: USB
• digital Input: ADAT
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Host Port: USB
• Number of headphone outputs: 2
• Type: Audio Interface
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (4.41 MB)
