Palmer Pro PLI 04 USB Stereo-DI-Box + Line Isolator + USB-Eingang Product Details

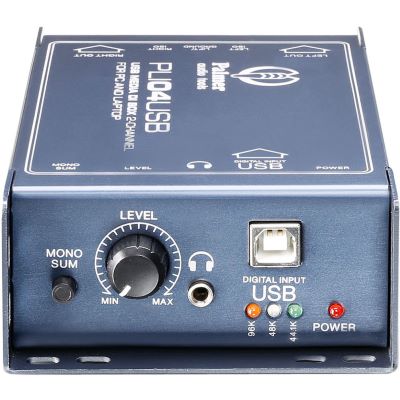

The Palmer Pro PLI 04 USB is a stereo DI box and line isolator with USB input. It allows unbalanced stereo audio signals to be easily fed from a computer's USB port to the balanced microphone inputs of mixing consoles. It is equipped with a high-quality 24-bit analog converter that supports the sample rates 44.1 kHz, 48 kHz and 96 kHz. The transformer-balanced XLR outputs of the stereo channels L and R are occupied as standard and have individual ground disconnectors. Due to the mono sum switch, the PLI04USB is also suitable as a signal splitter for routing the mono signal to two different audio systems. It also has a headphone output with volume control for pre-listening and a ground lift switch.
Features:
- Stereo DI Box and Line Isolator with USB Input
- Special USB interface to professional audio devices
- High-quality 24-bit analog converter
- 44.1 kHz , 48 kHz and 96 kHz Sampling rates
- Transformer balanced 3-pole XLR outputs
- Individual circuit breakers L and R
- Mono summation with signal splitter function
- Headphone output with volume control
Technical data:
- Product type: Line Isolators
- Number of channels: 2
- Number of inputs: 1
- Input connections: 1 : 2 , 41000 , via USB port
- Number of outputs: 3
- Output connectors: 3.5mm TRS , XLR
- Output impedance: 550 Ohm , Headphone 43 Ohm Max Ohm
- Frequency response: 10 - 41000 Hz
- Transformer balanced: Yes
- Gear ratio (Ratio): 1 : 2
- Housing material: Aluminium
- Housing surface: powder-coated
- width: 140 mm
- Depth: 95 mm
- height: 35 mm
- weight: 0,68 kg
Specs:
- Type: DI Box
- Theme: PA and Sonication
