Patchblocks PBMIX-3

DJ Headphone Cue: The Aux-Send signal is taken pre-fader. This means you can send a signal, despite its channel level setting, allowing for dry / wet control of the effect chain (i.e. how much of the unprocessed signal you want to mix in). This Pre-Fader Send also makes it possible so use the PBMIX as a DJ-Mixer, if headphones are connected to the send channel, turning it into a headphone cue.

Effect Send / Return Chain: The PBMIX-3 offers you a stereo send and return chain for external effects processors, such as guitar paddles or synthesiser modules. Each input channel can be added to the send channel and the send level is adjustable by a level knob. Also the return level can be controlled, if the return signal is connected to an input channel. Otherwise, the fixed-level return channel can be used.

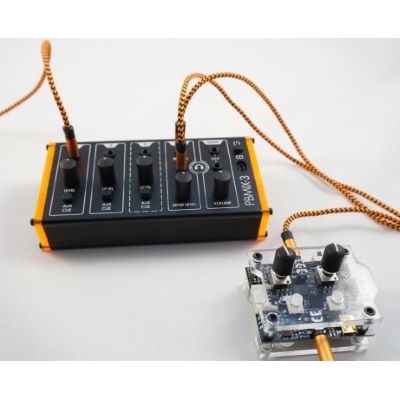

Daisy Chaining: You can easily daisy-chain several mixers in order to gain additional input channels by connecting the output of one to the return of another mixer.

Features:

• 3 stereo/mono inputs - 2 with line level gain (+/-12dB) and one with instrument level gain (+/-24dB).
• The Aux return channel can also be used as a 4th stereo/mono line level input.
• 1 line level stereo output and 2 headphone outputs (Main mix and Aux Send/Cue).
• Battery lasts for approx. 8 hours, charging time is 2 hours
• Input Impedance 10k, Output Impedance 1 ohm
• Max input/output voltage - 3.4V peak to peak, higher voltages will be clipped.
• RF shielding to prevent unwanted signal/noise coupling from radios, mobile phones and other high frequency devices.
• Dimensions: 150 x 75 x 50 mm (LxWxH)
• Weight: 265 g

Specs:

• Type: Module
• Theme: Recording and Studio
