Ram Audio Zetta 440 - 4 Kanal Endstufe 4 x 1000 W 2 Ohm Product Details
Audio Zetta's power amplifier was designed using state-of-the-art manufacturing processes and represents the optimum combination of performance and economy. The all-in power module comes in a mono design with upside-down construction and has all amplifier components already integrated. QuantaPulse-Ntzteil not only delivers power, it also offers innovative sterling options and power monitoring. The professional Edn level was designed with practical suitability in mind and offers a high degree of durability, reliability and quality.
Features:
- Highly efficient Class H design with unsurpassed audio quality
- Ultra-light with only 6.5 kg, the compact housing has a depth of just 25 cm
- Model with 4 channels and 4000 W
- Switch-mode power supply QuantaPulse™ with state-of-the-art technology of the latest generation
- PMS™ - RAM Audio Power Management System
- ICL™ - Clip Limiter
- Upside-down design prevents dust build-up in the cooling system
- Enormously comprehensive protective equipment

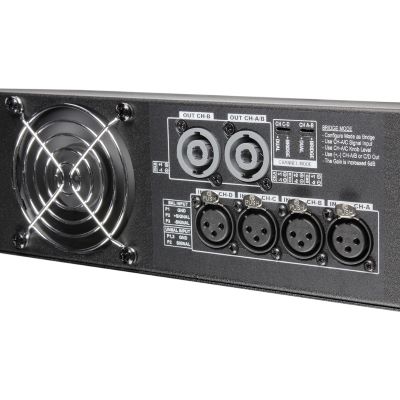

- Connections with industry standard Neutrik® XLR and Speakon® connectors
- Sealed snap-in potentiometers
- Fan is temperature controlled and vented to the front
- Operation in bridge or dual mode possible
PMS™ - RAM Audio Power Management System:
- Monitors all important parameters
- Power supply always delivers exactly the amount of power needed for safe operation
- e.g. under exceptional operating conditions
ICL™ - Clip Limiter:
- Protects speakers from overdriving
- Sound quality and print are preserved
Technical data:
- Product type: Power amplifier
- Type: 4-channel
- Output power: 4 x 1000 W / 1 kHz at 2 Ohm
- Output power: 4 x 1000 W / 1 kHz at 4 Ohm
- Output power: 4 x 630 W / 1 kHz at 8 Ohm
- Output power: 2 x 2000 W / 1 kHz at 4 Ohm, bridge mode
- Output power: 2 x 2000 W / 1 kHz at 8 Ohm, bridge mode
- Circuit concept: Class H
- Frequency width: 20 Hz - 20 kHz
- Distortion factor (THD): < 0.05 %
- Signal-to-noise ratio: 116 dB
- Damping factor: > 400
- Overdrive: > 75 dB
- Voltage gain: 32 dB Gain
- Input sensitivity: 1.9 dB
- Input impedance: 10 kOhm
- Protection circuits: ON/OFF transients, overheating, short circuit, soft start, speaker load mismatch, DC components, mute on power-up, open outputs, high frequency
- Controls: power, 2 x volume, dual/bridge switch
- Display elements: Power LED
- Connections Line: 4 x XLR
- Speaker connections: 4 x Speakon
- Cooling type: Fan
- Power supply: 30 - 240 V
- Current consumption: 11 A maximum
- Dimensions: 483 x 89 x 250 mm (WxHxD)
Specs:
- Type: Amps
- Theme: PA and Sonication
