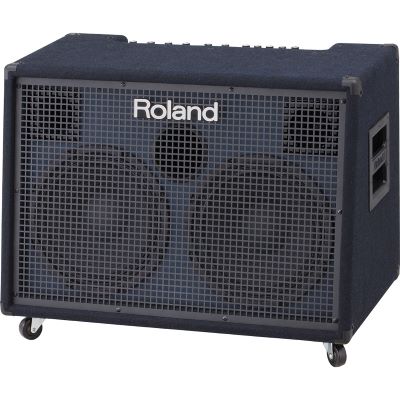

Roland KC-990 Keyboard-Verstärker

The KC-990 flagship is a performance powerhouse equipped with numerous high-end functions. With four internal DSP effects, four stereo input channels, a stereo aux input and the ability to connect a vocal microphone via XLR, the KC-990 is an all-in-one solution for musicians with large keyboard setups and small bands with electronic instruments and backing tracks. With its speaker configuration and 320 watts of power, the KC-990 offers a massive, full sound for use as a stage monitor and PA speaker. The Stereo Link option also makes it easy to connect a second KC-990 if you need more inputs or wider sound coverage.

Features:

• 320 Watt Flagship Stereo Keyboard Amplifier
• Integrated mixer with four stereo input channels, stereo aux input and master EQ
• Two newly developed 12" custom speakers with two custom horn tweeters
• Internal effects: Hall, Chorus, Tremolo and Rotation
• Rotation speed and effects control On/Off via optional external footswitch
• Flexible I/O with XLR microphone input, stereo XLR and 6.3mm line outputs, headphone output and more
• Metal bushings for increased durability
• Castors and side handles for increased mobility
• Rated output power: 320 W (160 W + 160 W)
• Nominal input level (1 kHz)
• CH1 (BALANCED, L/MONO, R): -50-- -20 dBu
• CH2 (L/MONO, R): -20 dBu
• CH3 (L/MONO, R): -20 dBu
• CH4 (L/MONO, R): -20 dBu
• AUX IN/MONITOR IN (AUX 1､AUX 2､AUX 3): -10 dBu
• STEREO LINK (IN): 0 dBu
• Nominal output level (1 kHz)
• LINE OFF (L/MONO, R): 4 dBu
• LINE OUT (SYMMETRIC L, R): 4 dBu
• STEREO LINK (OUT): 0 dBu
• orator
• 30 cm (12 inch) woofer x 2
• Horn tweeter x 2
• checks
• POWER switch
• GND LIFT switch
• [CH1]
• MIC/LINE button
• EFFECT key
• [CH2]
• LINE button
• EFFECT key
• [CH3]
• LINE button
• EFFECT key
• [CH4]
• LINE button
• EFFECT key
• [EFFECT]
• EFFECT button
• ROTARY SPEED button
• [AUX IN]
• LEVEL button
• MUTE SPEAKER button
• MUTE LINE OUT button
• [EQUALIZER]
• LOW button
• MIDDLE button
• HIGH button
• [PHONES]
• VOLUME button
• MASTER button
• indicator
• power
• plug connector
• CH1 (BALANCED) Jack: XLR Type
• CH1 (L/MONO, R) jacks: 1/4-inch phone type
• CH2 (L/MONO, R) jacks: 1/4" phone type
• CH3 (L/MONO, R) jacks: 1/4" phone type
• CH4 (L/MONO, R) jacks: 1/4-inch phone type
• AUX IN/MONITOR IN
• AUX 1 (L/MONO, R) jacks: 1/4" phone type
• AUX 2 (L, R) sockets: RCA phono type
• AUX 3 (STEREO) jacks: Stereo miniature phone type
• PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output)
• STEREO LINK (IN, OUT L, OUT R) jacks: 1/4" phone type
• LINE OUT (L/MONO, R) jacks: 1/4" phone type
• LINE OUT (BALANCED L, R) Jacks: XLR type
• FOOT SW jack: 1/4-inch TRS phone type
• Power consumption: 98 W
• Accessories: User manual
• Rolls ( 4 pieces)
• width: 75,9 cm
• depth: 47,0 cm
• Height (incl. castors): 58.5 cm
• height (without castors): 53,4 cm
• Weight: 42 kg

Specs:

• Type: Amps
• Theme: Keyboard Instruments
