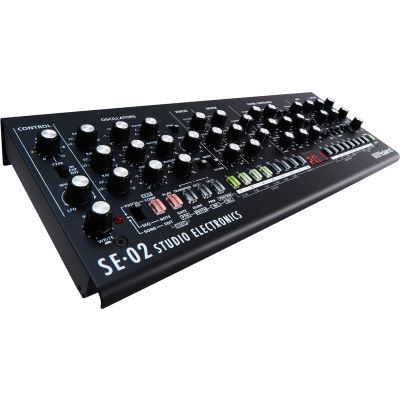

Roland SE-02 Analog Synthesizer

A collaborative effort from Roland and Studio Electronics, the SE-02 is the debut product of the new Roland Boutique Designer Series. The SE-02 uses authentic discrete analog circuitry to create a synthesizer with a distinctly vintage sound and vast programming options. With an array of high-quality knobs and switches and a uniquely creative onboard sequencer, the SE-02 delivers massive tone and texture with expressive hands-on control.

Features:

• Polyphony 1 voice
• Preset Patch 384 (128 x 3 BANK)
• User Memory Patch: 128, Pattern: 128, Song: 16
• Oscillators: OSC 1, OSC 2, OSC 3 (OSC 3 is also available as LFO), Waveform: Triangle, Sawtooth, Triangle + Sawtooth (OSC 1, 2 only), Reverse sawtooth (OSC 3 only), Square 1–3
• Effect: Delay
• Connectors
• PHONES jack: Stereo miniature phone type
• OUTPUT jack: Stereo miniature phone type
• EXT INPUT jack: Miniature phone type
• VCF CV INPUT jack: Miniature phone type
• CV INPUT jack: Miniature phone type
• GATE INPUT jack: Miniature phone type
• TRIGGER IN jack: Miniature phone type
• TRIGGER OUT jack: Miniature phone type
• MIDI connectors (IN, OUT)
• USB port: Micro B type (Audio, MIDI)
• Power Supply: AC adaptor (PSB-1U)
• Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Power cord
• Width: 300 mm 11-13/16 inches
• Depth: 128 mm 5-1/16 inches
• Height: 46 mm 1-13/16 inches
• Weight (excluding AC adaptor) 950 g, 2 lbs 2 oz

Specs:

• Color: Black
• USB-MIDI: USB and MIDI
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Type of sound generation: Analogue
• Type: Synthesizer
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (874.37 KB)
