Sennheiser ew 300 G4-BASE COMBO-BW

The G4 300 series utilizes the improved switching bandwidth of up to 88 MHz. New frequency ranges allow a multi-channel setup with dozens of channels, with reliable operation. The best choice when you need a bodypack transmitter, a handheld transmitter and maximum flexibility. This basic set consists of a stationary receiver, bodypack transmitter and handheld transmitter. Simply add your favorite microphone capsule and your favorite clip-on or headset microphone.

Features:

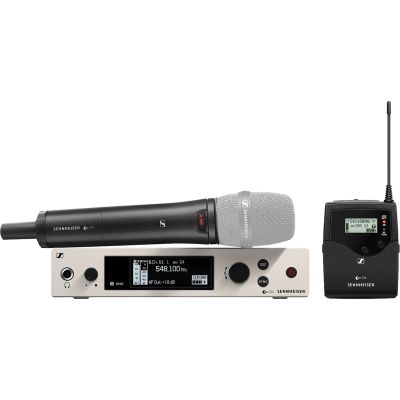

• EW 300 G4-BASE COMBO
• Wide range of products and existing accessories (such as microphones) allow use in any environment
• Up to 88 MHz bandwidth, up to 32 compatible channels
• High transmission power (10/30/50 mW), depending on country-specific regulations
• Range: up to 100 meters
• Compatible with the LSP 500 PRO wireless integrated PA system
• Remote-controlled mute button for the bodypack transmitter

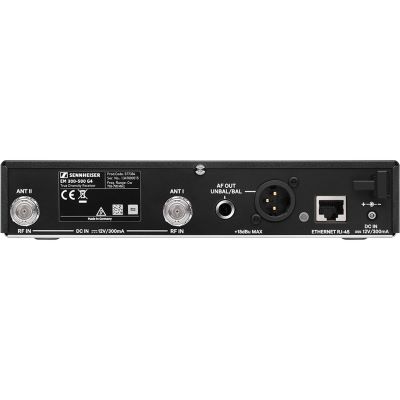

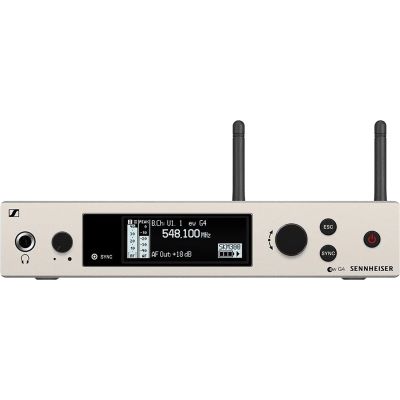

• EM 300 G4 true diversity receiver

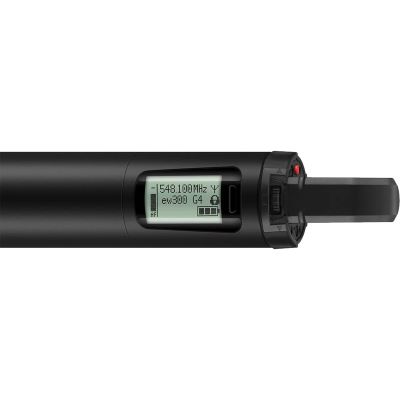

• SKM 300 G4-S handheld transmitter

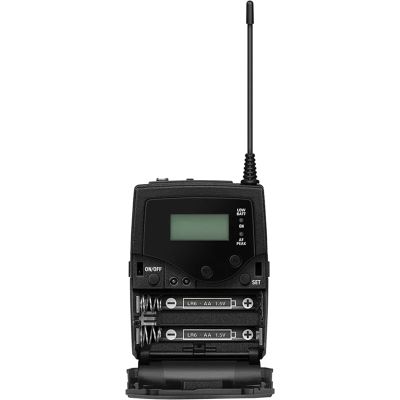

• SK 300 G4-RC bodypack transmitter
• MZQ 1 microphone clamp
• 4 AA batteries
• Power supply unit
• 2 rod antennas
• GA 3 Rack mounting set
• Quick guide

Technical data

• Frequency range: 626 - 698 MHz
• Nominal deviation: ± 24 kHz
• Modulation type: Broadband FM
• Antenna connection: 2 BNC sockets
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
• Switching bandwidth: up to 88 MHz
• Sidelobe attenuation: typ. ≥ 70 dB
• Adjacent channel suppression: typ. ≥ 75 dB
• Receiver principle: True diversity
• Current consumption: 350 mA
• Power supply: 12 V DC
• Dimensions approx. 202 x 212 x 43 mm

EQ:

• Preset 1: Flat
• Preset 2: Low Cut (-3 dB at 180 Hz)
• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
• Preset 4: High Boost (+6 dB at 10 kHz)

Specs:

• Color: Black
• Set Offer: no
• Converter: Dynamic
• Frequency band: UHF
• Type: Radio System
• Theme: Microphones

Instruction manual / Safety instructions:

• Manual (13.38 MB)
