Sennheiser ew 500 G4-965-BW 626-698 MHz

The Sennheiser ew 500 G4-965-BW set consists of an SKM 500 G4 handheld, an MMK 965-1 Cardoid / Supercardoid condenser capsule, a 300-500 G4 rackmount receiver, a GA3 rack kit and a microphone clip. Renowned sound engineers rely on the flexibility of the ew 500 G4, especially when setting multi-channel settings on stages around the world. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups.

Features:

• Half rack width true diversity receiver in a full metal housing with high contrast OLED display
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in the UHF range
• Ethernet Connection for Wireless Systems Manager (WSM) Software for best frequency management in multi-channel systems
• High transmission power (up to 50 mW, tunable in three steps 10/30/50), depending on country-specific regulations

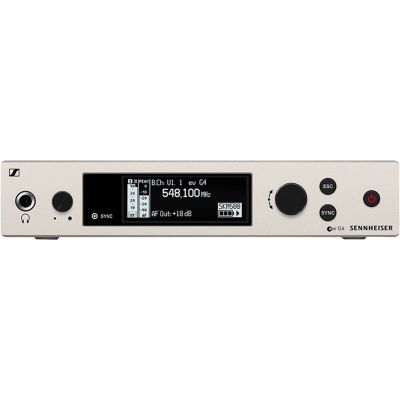

Technical Specificatons EM 300-500 G4:

• Frequency range: 626 - 698 MHz
• Dimensions: approx. 202 x 212 x 43 mm
• Compander system: Sennheiser HDX
• Distortion factor at 1kHz: ≤ 0.9 %
• Weight: approx. 980 g
• Audio output: 6.3 mm jack (unbalanced): +12 dBu; XLR jack (balanced): +18 dBu
• Signal-to-noise ratio: ≥ 115 dBA
• Switching bandwidth: up to 88 MHz
• Peak stroke: ±48 kHz
• Rated travel: ±24 kHz
• Modulation type: Broadband FM
• Power supply: 12 V DC
• Antenna connection: 2 BNC sockets
• Current consumption: 350 mA
• Adjacent channel suppression: typ. ≥ 75 dB
• Secondary reception attenuation: typ. ≥ 70 dB
• Reception frequencies: max. 3520 reception frequencies, tunable in 25 kHz steps 20 channel banks each with up to 32 preset channels, intermodulation-free 6 channel banks each with up to 32 freely programmable channels
• HF sensitivity: < 2,5 μV for 52 dBA eff S/N
• Squelch: 5 to 25 dBμV, adjustable in 2 dB steps
• Temperature range: -10 °C to +55 °C
• Receiver principle: True-Diversity
• Blocking: ≥ 75 dB

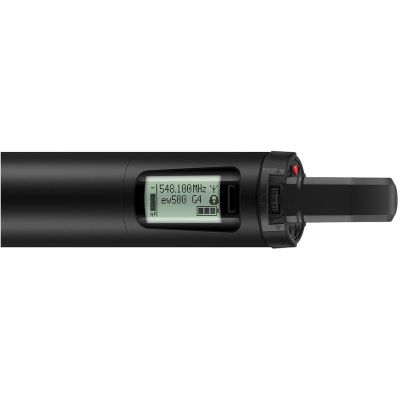

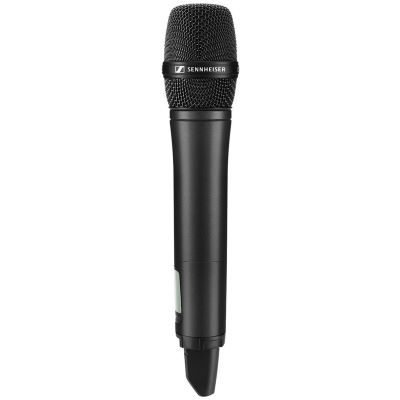

Technical Specificatons SKM 500 G4:

• Dimensions: 50 x 265 mm
• Compander system: Sennheiser HDX
• Distortion factor at 1kHz: ≤ 0.9 %
• Weight: (incl. batteries) approx. 450 g
• Signal-to-noise ratio: ≥ 115 dBA
• HF output power: switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak stroke: ±48 kHz
• Rated travel: ±24 kHz
• Operating time: typ. 8 h
• Modulation type: Broadband FM
• Power supply: 2 AA batteries, 1.5 V or battery pack BA 2015
• Current consumption: at nominal voltage: typ. 180 mA; with transmitter switched off: ≤ 25 µA
• power supply: Battery 3 V / Battery 2.4 V
• Transmission frequencies: max. 3520 transmission frequencies, tunable in 25 kHz steps 20 channel banks each with up to 32 preset channels, intermodulation-free 6 channel banks each with up to 32 freely programmable channels
• NF transmission range: 80 - 18,000 Hz
• Temperature range: -10 °C to +55 °C
• Frequency stability: ≤ ±15 ppm

Technical Specificatons MMK 965-1:

• Audio transmission range: 40 to 20,000 Hz
• Max. Sound pressure level: 144 dB
• Converter principle: externally polarized double diaphragm condenser microphone
• Weight: 162 g
• Diameter: Diameter of diaphragm: 2.54 cm (1")
• Polar pattern: cardioid/supercardioid, switchable
• Free field idle transmission (1kHz): 7.0 mV/Pa
• Equivalent noise level A-weighted according to DIN IEC 651: 18 dB
• Dynamic range: 126 dB(A)

Scope of delivery:

• EM 300-500 G4 True-Diversity Receiver
• SKM 500 G4 hand transmitter
• MMK 965-1 Microphone module
• MZQ 1 Microphone clamp
• 2 AA batteries
• power supply
• GA 3 Rack Mounting Set
• 2 rod antennas
• short instruction
• safety instructions
• Data sheet with manufacturer's declarations

Specs:

• Color: Black
• Set Offer: no
• Converter: w/o
• Frequency band: UHF
• Type: Radio System
• Theme: Microphones
