Sennheiser ew 500 G4-MKE2-BW 626-698 MHz

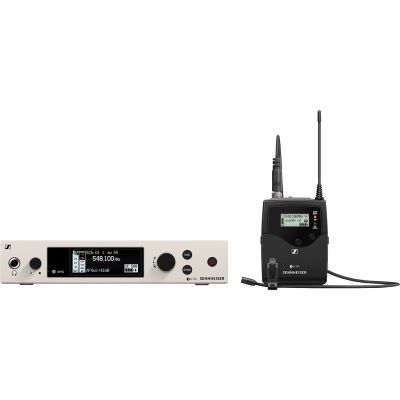

The Sennheiser ew 500 G4-MKE2-BW is a robust all-in-one radio system for broadcasters and presenters. The radio system has a frequency range from 626 to 698 MHz and up to 32 compatible channels. The set consists of 1 SK 500 G4 bodypack transmitter, 1 MKE 2 Gold Lavelier microphone, 1 EM 300-500 rackmount receiver and 1 GA3 rackkit.

Features:

• Half rack width true diversity receiver in a full metal housing with high contrast OLED display
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in the UHF range
• Ethernet Connection for Wireless Systems Manager (WSM) Software for best frequency management in multi-channel systems
• High transmission power (up to 50 mW, tunable in three steps 10/30/50), depending on country-specific regulations

Technical Specificatons:

• Frequency range: 626 - 698 MHz
• Dimensions: 202 x 212 x 43 mm
• Compander system: Sennheiser HDX
• Distortion factor at 1kHz: ≤ 0.9 %
• Weight: approx. 980 g
• Audio output: 6.3 mm jack (unbalanced): +12 dBu; XLR jack (balanced): +18 dBu
• Signal-to-noise ratio: ≥ 115 dBA
• Switching bandwidth: up to 88 MHz
• Peak stroke: ±48 kHz
• Rated travel: ±24 kHz
• Modulation type: Broadband FM
• Power supply: 12 V DC
• Antenna connection: 2 BNC sockets
• Current consumption: 350 mA
• Adjacent channel suppression: typ. ≥ 75 dB
• Secondary reception attenuation: typ. ≥ 70 dB
• Reception frequencies: max. 3520 reception frequencies, tunable in 25 kHz steps 20 channel banks each with up to 32 preset channels, intermodulation-free 6 channel banks each with up to 32 freely programmable channels
• HF sensitivity: < 2,5 μV for 52 dBA eff S/N
• Squelch: 5 to 25 dBμV, adjustable in 2 dB steps
• Temperature range: -10 °C to +55 °C
• Receiver principle: True-Diversity
• Blocking: ≥ 75 dB

Scope of delivery:

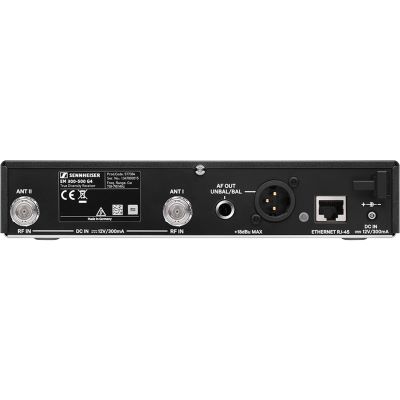

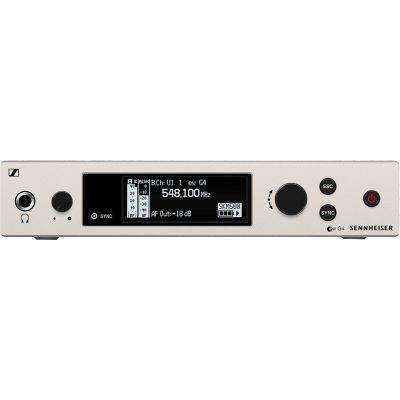

• EM 300-500 G4 True-Diversity Receiver

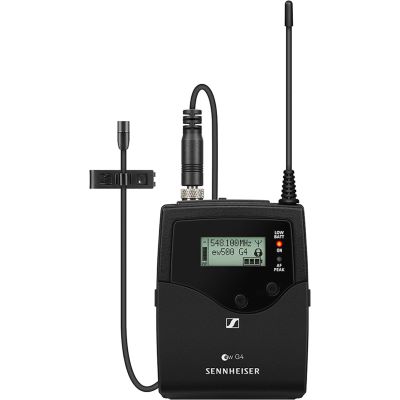

• SK 500 G4 Pocket transmitter

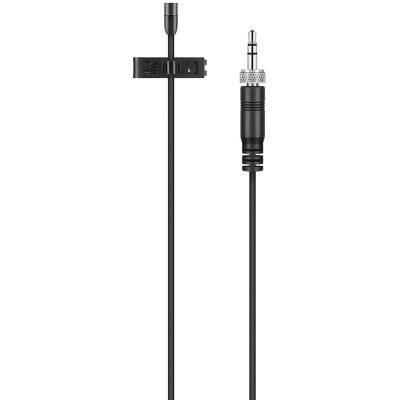

• MKE 2 clip-on microphone
• GA 3 Rack Mounting Set
• 2 AA batteries
• 2 rod antennas
• power supply
• short instruction
• safety instructions
• Data sheet with manufacturer's declarations

Specs:

• Color: Black
• Set Offer: no
• Converter: w/o
• Frequency band: UHF
• Type: Radio System
• Theme: Microphones

Instruction manual / Safety instructions:

• Manual (13.38 MB)
