Sennheiser SL Handheld Set DW-3-EU C

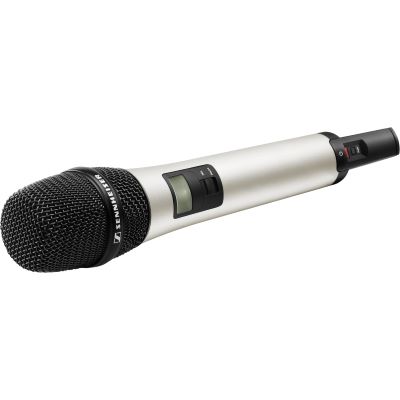

The robust handheld transmitter SL Handheld DW is specially designed for the transmission of spoken words.

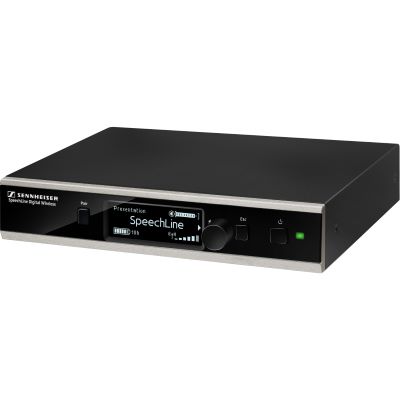

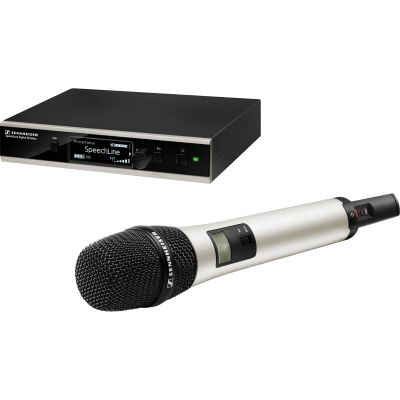

The SL Handheld Set includes the handheld microphone, a stationary receiver and everything you need for installation and use. The MME 865 capacitor capsule is also included. This is not just any microphone capsule, but the best capsule for speech applications.

All sets are offered with a rechargeable battery with up to 15 hours operating time. The battery can be charged via USB and the corresponding cable as well as a transport case are included in the scope of delivery.

Features:

• Automatic frequency and interference management
• Speech-optimized condenser microphone capsule
• Clear LC display
• Long operating time (up to 15 hours)
• Intelligent Energy Management and Li-Ion Technology
• Secure 256-bit AES encryption
• Remote control
• Scope of delivery: SL Handheld DW, MME 865 capsule, BA 10 battery, case or GA 4 rack adapter set and bag
• Audio transmission range: 20 to 20,000 Hz
• Sound pressure level at 1 kHz 152 dB
• Distortion factor at 1KHz typ. 0.1 %
• Converter principle: Condenser
• Power consumption: 350 mA
• Signal-to-noise ratio: > 90 dB(A)
• HF output power: adaptive, up to 250 mW
• Operating time battery pack: typ. 15 h
• Operating time Batteries: typ. 10 h
• Power supply: 12 V DC
• Antenna connection: 2 x reverse SMA
• Audio output level: (balanced) max. -18 dBu, typ. -24 dBu
• Audio output level: (unbalanced) max. +6 dBu
• Dynamic range: > 120 dB(A)
• Frequency range EU: 1.880 to 1.900 MHz
• Sensitivity, transmission factor: 1.6 mV/Pa
• Sample rates: 24 bit/48 kHz
• Audio out connection: XLR 3M
• Audio out: 2x RCA
• Network connection: RJ 45

Specs:

• Color: Silver
• Set Offer: yes
• Converter: Condenser
• Frequency band: 1,9 GHz
• Type: Radio System
• Theme: Microphones
