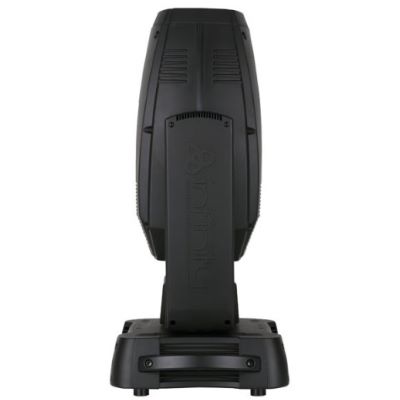

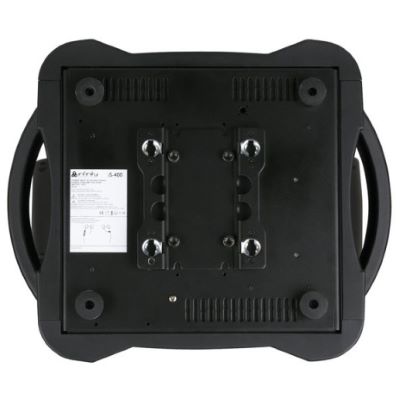

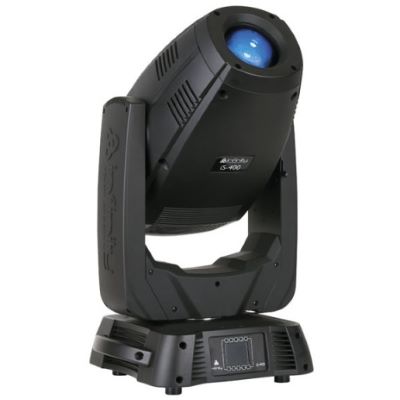

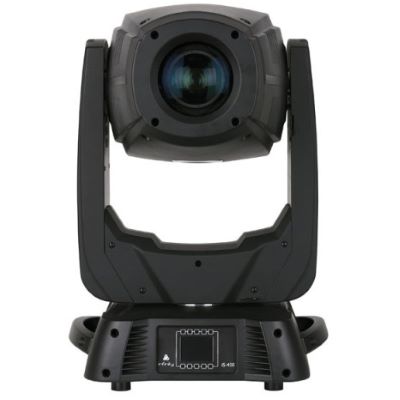

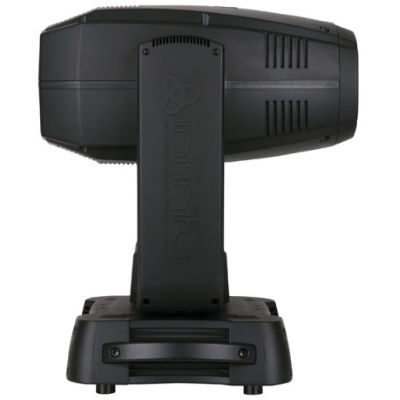

Showtec Infinity iS-400 LED Spot

The iS-400 is a moving head with a 440 W LED. It has adual rotating goboard, CMY and dichroic color wheels, and a CTO prism,a frost effect, a zoom range of 1:3 and an iris. Each gobo wheel has a special multi-color gobo that can be combined and morphed to create stunning, stunning colorful projections and floating effects. Since both gobo wheels and the 3-fold prism you have almost infinite beam and projection possibilities. are at your disposal. The gobo and color wheels can change colors and gobo jumps quickly, but also very slow soft gobo turns. The CMY system is equipped with a CTO filter and both fast and soft. Through an iris macro channel the lighting designer can directly adjust the beam with effects without prior programming. trim. The Digital Motion FX can create effects in addition to the gobo setting, which make even more spectacular projections possible. With its high-quality optics and the 440 W LED chip, the iS-400 replaces the 700/800 W headlights with discharge lamps.

Features:

• Zoom range 13° - 37
• 2 rotating gobo wheels
• CMY & CTO
• Digital Motion FX

Technical Data Optics

• dimmer: 0-100%
• Stroboscope: 0-20 Hz
• Focus: Motorized autofocus
• Iris: Motorized, 0-100%
• Zoom: Motorized
• Prism: rotating 3-fold prism
• Frost filter: Yes
• Animation: Digital Motion FX
• Pan: 540°.
• Tilt: 270°.
• Pan/Tilt resolution: 16-bit
• Pan/Tilt modes: Speed / Uniform
• Special features: Pan/Tilt, color, blackout during gobo change, selectable pan & tilt ranges, 540°/360°/180°, 270°/180°/90°, inverted pan/tilt movement
• Rotating gobo wheel 1: 6 glasses
• Rotating gobo wheel 2: 6 glasses
• Gobo functions: Gobo Flow Effect, Gobo Shake Effect
• Rotation: In both directions
• Gobo 1 inside diameter: 28 mm
• Gobo 2 inside diameter: 26 mm
• Outer diameter gobos: 32 mm
• Color wheel: 7 dichroic filters + white
• CMY: 0-100%.
• CTO: 0-100%.
• Color functions: split colours, rainbow flow effect, CMY macros

Technical data:

• Lux @ 5m: 16000 (13°)
• Beam angle: 13° - 37
• Light source: 440 W LED White (LumiEngin)
• Input voltage: 100-240 VAC
• Power consumption: Max. 650W at full power output
• Included: Battery powered color display with gravity sensor
• Battery life: max. 30 days (fully charged)
• Mode: DMX, Auto, Master/Slave
• Control protocol: DMX512
• Control variant: Advanced 38CH / Basic 28CH
• Wireless DMX: optionally available
• Color: Black
• Housing: metal & flame retardant plastic

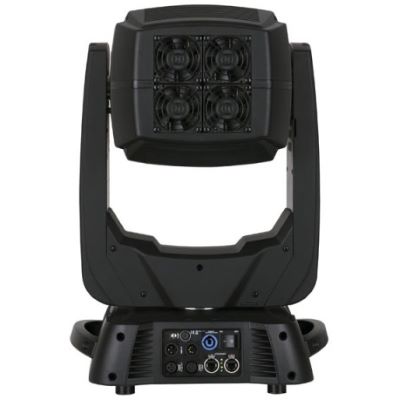

• Data connection: XLR, 3- & 5-pole & RJ45 input & output
• Mains connection: Powercon input
• Dimensions (W x D x H): 346 x 417 x 616 mm
• Weight: 35kg

Specs:

• Beam: Spot
• Light source: LED White
• Colour mixing: Up to 9 Color Wheels
• Gobo: up to 6, rotating
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (4.33 MB)
