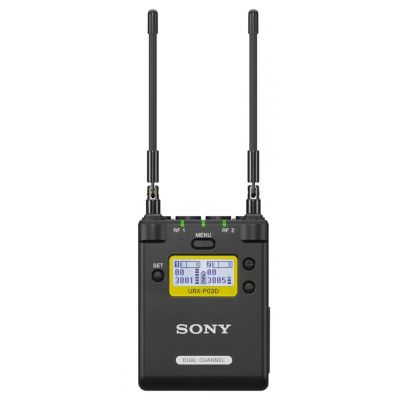

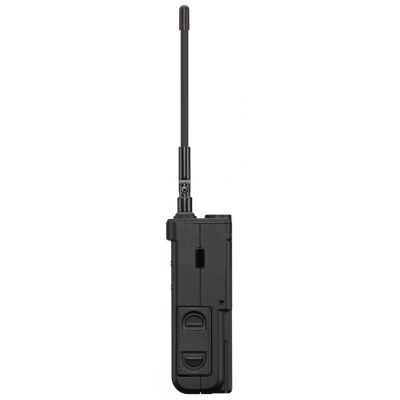

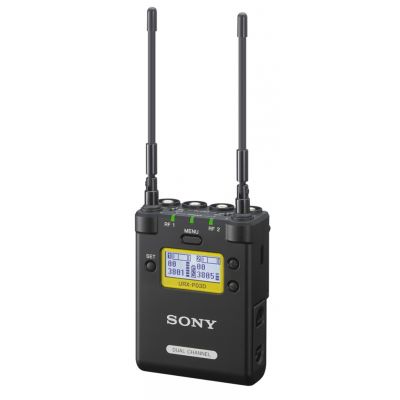

Sony URX-P03D/33

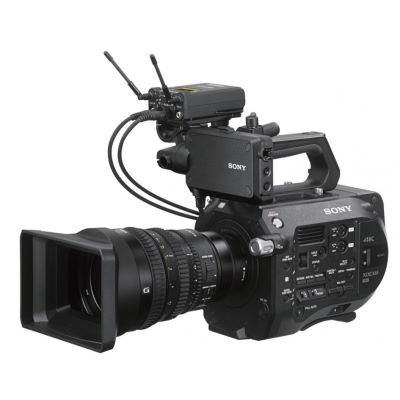

The URX-P03D/33 (TV Channel 33-40 / 566-630 MHz) is a portable 2-channel receiver designed specifically for use with camcorders and DSLR cameras. It is available in three different frequency versions. In combination with the various UWP-D transmitters, the compact system offers first-class audio quality, extremely reliable RF transmission and easy handling on 2 parallel channels.

Features:

• Portable 2 Channel UWP-D Series Receiver
• Reliable "True-Diversity" transmission for both audio channels - each audio channel has 2 separate high-frequency circuits
• "Digital Audio Processing" technology for superior audio quality
• Wireless audio transmission to DSLR or camcorder via SMAD MI adapter
• Additional input for lavalier or stereo directional microphones
• 3-channel mix function in receiver
• Large switching bandwidth provides a wide selection of transmission channels
• Clear display with backlighting and simple menu navigation for uncomplicated operation
• Clear Channel Scan, Active Channel Scan and Infrared Synchronization with the transmitter enable quick and easy channel setup
• Extremely light, compact and robust metal housing
• Compatibility with all UWP-D Series transmitters and previous UWP & WL800 Series transmitters

Technical data:

• Transmission frequencies: TV channel 33-40 / 566-630 MHz
• Receiver oscillators: Quartz-controlled PLL synthesizer
• Type of reception: Space/True-Diversity-System
• Antennas: 1/4 lambda, angle adjustable
• RF squelch level: 15 dBu / OFF (0 dBu = 1 uV)
• Audio output level: -60 dBV (modulation with 1 kHz and frequency deviation of ±5.0 kHz)
• Audio input level: -50 dBV (at -60 dBV output and 1 kHz input frequency)
• Headphone output level: 5 mW (16 Ù)

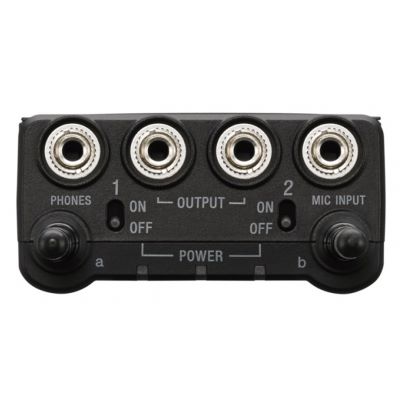

• Audio input/output connector: 3.5 mm mini jack socket
• Frequency response: 40 Hz to 18 kHz
• Distortion: 0.9% or less (with a modulation frequency of 1 kHz and a frequency deviation of ±5.0 kHz)
• Pilot tone Signal: 32.382 kHz UWP-D Compander mode; 32 kHz UWP Compander mode; 32.768 kHz WL800 Compander mode
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -20 °C to +55 °C
• Supply voltage: 3.0 V (two AA LR6 alkaline batteries); 5.0 V (through USB port)
• Battery life: approx. 5 hours (measured with two alkaline batteries Sony LR6/AA at 25 °C)
• Dimensions: 63 × 82 × 28.4 mm (width / height / depth)
• Weight: approx. 160 g (without batteries)
• Supplied Accessories: Shoe-Mount Adapter, Belt Clip, Adapter Output Cable XLR to BMP, Adapter Cable Mini Stereo Plug to BMP, CD-ROM

Specs:

• Color: Black
• Set Offer: no
• Frequency band: UHF
• Type: Receiver
• Theme: PA and Sonication
