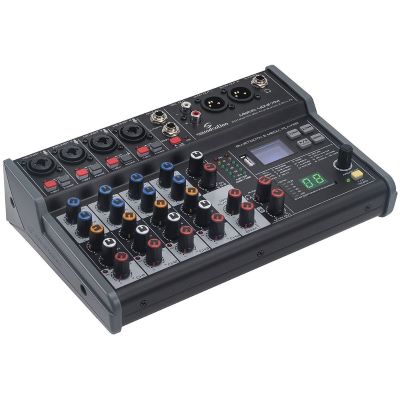

Soundsation MIOMIX 404FXM

The Soundsation MioMix 404FXM is a 6-channel mixer with USB player and digital multi-effects, making it ideal for small home recording, live gigging and podcasting applications that require a professional level of quality and maximum portability. The 4 microphone inputs are equipped with noise-free preamps that accept all major sound sources, such as condenser microphones - thanks to +48V phantom power -, dynamic microphones, line and high impedance inputs (guitars, basses, etc.). Keyboards, CD players, DJ consoles, tablets or smartphones can be connected to the stereo line input. The USB and BT player accepts audio files in WAV, MP3, WMA and FLAC formats, as well as wireless audio streaming (BT). It also records your concert in MP3 format (48kHz/16bit @ 128Kbps). The 24-bit/48kHz digital effects with 16 commonly used presets (reverb/room/plate reverb, delay, echo, chorus, etc.) and TAP tempo function let you enhance your performance and adjust up to two parameters of each effect.

Features:

• 4 Mic/Line channels with noise-free preamp, combo connector, Hi-Z input for guitars, +48V phantom power, peak meter.
• 1 stereo line channel with ¼" jack inputs, +4/-10dB pad adapter, and peak indicator
• USB media player and recorder (WAV, MP3, WMA, FLAC and BT wireless audio streaming)
• 2-band EQ for channels 1 to 4
• 24-bit/48kHz 16 preset digital effect with TAP tempo and up to 2 adjustable parameters
• Media Player output level control
• Headphone monitor output with level control
• XLR main outputs with master level control
• Stereo 6-Led VU meter bar
• Rugged and lightweight metal chassis for maximum flexibility and portability

Specifications:

• Inputs: balanced XLR/jack combination (channel 1-4), balanced ¼" jack (channel 5-6).

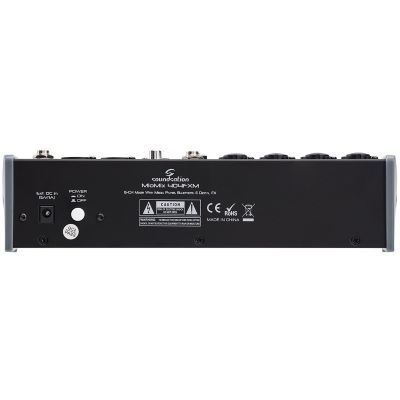

• Output: balanced XLR (Main Out L-R), stereo ¼" jack (Phones), stereo RCA (Rec Out)
• Channel 1-4 functions: +48V phantom power, impedance switch (Line/Hi-Z), 2-band EQ (80Hz/12kHz +/-15dB), effect send level, pan position, channel volume, peak LED indicator
• Channel 5-6 functions: Impedance switch (+4/-10dB), pan position, channel volume, peak LED indicator
• USB player buttons: up/back, down/forward, play/pause/enter, menu
• USB player functions: BT streaming, music player, audio recording, EQ curve selection
• USB drive format: FAT32 format - max 64GByte
• Player file formats: WAV, MP3, WMA, FLAC and audio streaming via BT
• Recorder file format: MP3 (48kHz/16bit @ 128Kbps)
• Digital effect: 24-bit sigma-delta, 256x oversampling, 48kHz sampling rate
• Level meter: 2x6 LED display
• Maximum output level: 3 Vrms
• Frequency response: +/-0.5dB, 20Hz-20kHz
• Dynamic range: 102dB
• THD+N @ 1kHz: =0.003%
• Stereo Crosstalk: 92dB
• Power Requirements: DC 5V, 0.5A
• Power consumption: Max. 2.5W
• Size (WxDxH): 220 x 165 x 66 mm
• Net weight 1.2 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (5.17 MB)
