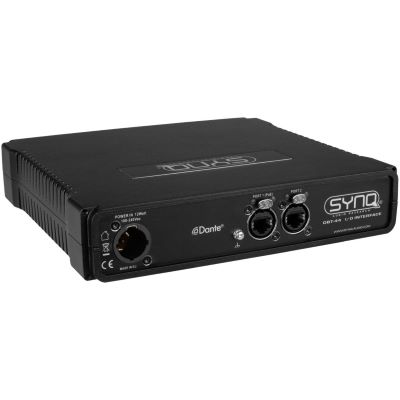

Synq DBT-44 Dante Interface

Synq introduces the DBT-44, a high-quality analog/DANTE® network audio bridge for touring applications with 4 analog inputs + outputs. The DBT-44 is capable of converting DANTE network audio to 4 high-quality balanced analog outputs, as well as 4 high-quality balanced analog inputs to DANTE network audio. Built-in DSP audio processing on all channels makes the interface perfect for use as a DANTE-enabled speaker management processor.

Features:

• Synq - DBT-44 Dante Interface
• High-quality analog/Dante network audio bridge for fixed installation
• Converts DANTE® network audio to 4 high-quality balanced analog outputs
• Converts 4 high-quality balanced analog inputs to DANTE® network audio
• High-quality analog/Dante network audio bridge for on-stage use
• GIGABIT Ethernet input/output thanks to a high-speed Marvell switch (no connection delays)
• Built-in DSP AUDIO PROCESSING (parametric EQs, compressors, delays, ...) on all channels: perfect for use as a DANTE-enabled loudspeaker management processor, but also usable in many other applications
• 8x8 AUDIO MATRIX for local premix, flexible routing, ...
• Integrated WEB SERVER: fully graphical and very user-friendly user interface for easy configuration and DSP control on any network device
• The software "SYNQ Network Discovery Tool" included in the package makes it extremely easy to find the device(s) on a local network and open it on any desktop computer without knowing the IP address
• OSC protocol support: all functions can be controlled by self-developed apps running on iPhones, Android phones, tablets and desktop computers
• Extremely high audio quality: S/N > 120dB ~ THD: < 0.003%
• Fully equipped with original Neutrik® XLR and EtherCON connectors
• Complies with IEEE 802.3-2005 information technology standard
• Extreme reliability thanks to the exclusive use of industrial-grade components, such as: High-end audio DACs from Burr Brown, AKM ADCs, electrolytic capacitors from Wurth, ...

Specs:

• Color: Black
• Set Offer: no

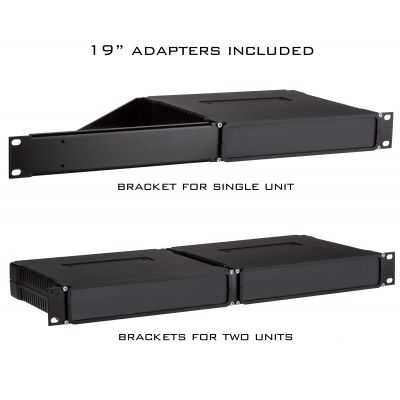

• Rack Mountable: yes
• Line Inputs: 4
• Mic Inputs: 4
• Phono Inputs: 0
• digital Input: none
• digital Output: none
• Headphone Out: no
• Instrument Inputs: 4
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Line Outputs: 0
• Host Port: n / a
• Type: Audio Interface
• Theme: Recording and Studio
