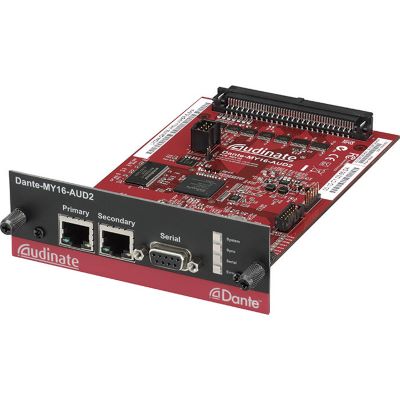

Yamaha MY16 AUD2

The Dante-MY16-AUD2 card allows a direct connection to PC or MAC without the need for an audio interface. It also supports 44.1 and 88.2 kHz sampling rates.

The Dante MY16-AUD2 card is a fully compatible standard Yamaha mini YGDAI card that instantly activates your Yamaha mixer, processor or power amplifier. Each Dante-MY16-AUD2 provides 16 bi-directional audio channels (8 at 96 kHz) and full Dante network audio redundancy over Gigabit Ethernet.

Features:

• Supports 44.1 and 88.2kHz sampling rates in addition to the previously supported 48 and 96 kHz sampling rates.
• Sample Rate Pull-Up/Down can be used to synchronize audio with video that has undergone a frame rate conversion.
• Dante-MY16-AUD2 cards can be daisy-chained via the secondary Ethernet port.
• Dante-MY16-AUD2 can be PIN locked and unlocked using the Dante controller.
• 2x RJ-45 connectors for Dante I/O, 1x D-Sub 9-pin for RS232-C.
• The latency time can be selected from five preset values: 0.25 ms, 0.5 ms, 1.0 ms, 2.0 ms or 5.0 ms.
• When using multiple Dante-MY16-AUD2 cards, more than 16 audio channels can be transmitted.
• Automatic detection and setup of network devices. The device designations can be specified as required.

Specs:

• Color: Multi-Colored
• Set Offer: no
• Rack Mountable: no
• Line Inputs: 0
• Mic Inputs: 0
• Phono Inputs: 0
• digital Input: none
• digital Output: none
• Headphone Out: no
• Instrument Inputs: 0
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Line Outputs: 0
• Host Port: n / a
• Type: Audio Interface
• Theme: Recording and Studio
