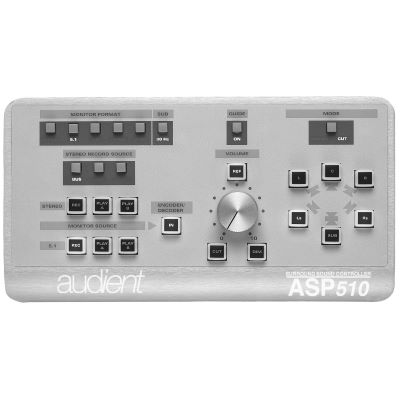

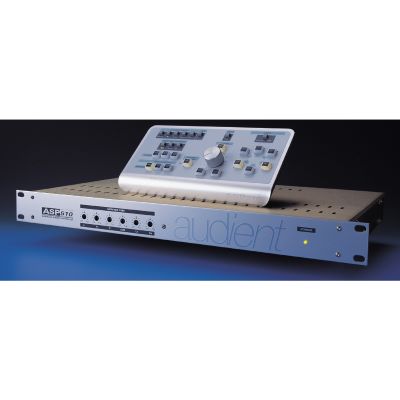

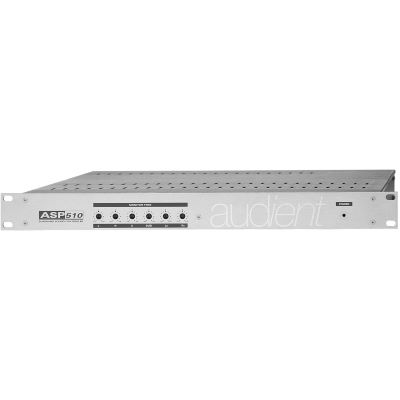

Audient ASP510 Product Details
The ASP510 integrates easily and seamlessly with any console or DAW based surround set-up to provide comprehensive control of the monitoring and record functions for multiple surround sound formats including: 5.1, LCRS, Dolby Surround, DVD-Video, DVD-Audio, DTS, and SACD.
The ASP510 a perfect solution for various applications. Surround sound music production. DVD-V and DVD-A authoring. Film and Video Post-Production. Film Production and Foley. SACD authoring. DTS authoring. Video games production. Digital television. Audio visual production. Multi-channel OBs.
Features:
- 6 preset Monitor Formats
- Supports three 5.1 Surround and three Stereo sources
- 8 inputs from console (5.1 Surround plus Stereo)
- 8 outputs to recorders (5.1 Surround plus Stereo)
- Switchable Encoder/Decoder insertion
- 6 speaker outputs, each with Level Trim
- Individual speaker Cut/Isolate functions
- Universal console Solo and Monitor system interface
- User definable Monitor Reference and Dim levels
- Internal Pink Noise generator
- Guide track input
- Ergonomic control surface with clear status indication
- switchable 120Hz filter for subbass
Technische Daten:
- Connectors: SUB-D, RJ45
- Input: Nominal levels +4dBu, max. +24dBu
- Output: Nominal levels +4dBu, max. +24dBu
- 22 Hz - 22 kHz ±0.25 dB
- Noise <- 92 dBu 22 Hz-22 kHz
- THD+Noise < 0.003% +4dBu 1 kHz
- channel tracking ±0.25 dB
- Class-A design
- PSU: 230V
Specs:
- Talkback Section: no
- Headphone Out: yes
- LED Display: yes
- Set Offer: no
- Color: Silver
- Type: Monitor Controller
- Theme: Recording and Studio
Instruction manual / Safety instructions:
