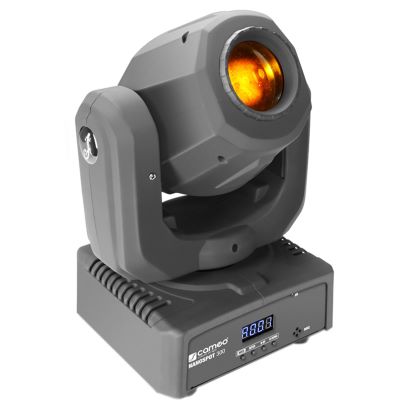

Cameo NanoSpot 300 - LED Mini Moving Head 30 W

The Cameo NanoSpot 300 is a miniature moving head with 540° pan and 230° tilt that is powered by a single 30W LED. It sports a color wheel with red, orange, yellow, green, blue, cyan and purple filters, 7 attractive gobos plus 7 stunning lightshow presets.

The NanoSpot 300 includes all the features of larger moving head models such as 3 DMX modes, an integrated microphone for sound activation as well as master, slave and standalone operation. Setting is easy and intuitive via the bright 4-button display.

The Cameo NanoSpot 300 comes with an infrared handset for convenient remote control and an omega bracket which provides multiple mounting options.

Features:

• Miniature moving head with single 30W LED
• 540 x 230 pan and tilt
• Colour wheel with red, orange, yellow, green, blue, cyan and purple filters
• Gobo wheel with 7 gobos
• 7 lightshow presets
• Dimmer and strobe effects
• 3 DMX modes plus standalone, master and slave operation
• 4 function keys + display for manual control
• Built-in microphone for sound control
• IR remote control included
• Comes with omega bracket for multiple mounting options
• Type: LED Moving Effects
• Colour spectrum: white
• Number of LEDs: 1
• LED type: 30 W
• Dispersion: Beam 10° / Field 12°
• Number of gobos: 7 + open
• DMX input: XLR 3-pin male
• DMX output: XLR 3-pin female
• DMX mode: 11-channel, 9-channel, 5-channel
• DMX Functions: Dimmer, strobe, Moving Speed, Gobo wheel, Pan/Tilt fine, Pan/Tilt, Colour wheel, sound programs, auto programs
• PAN movement: 540°
• TILT movement: 230°
• Standalone modes: sound programs, auto programs
• Controls: Value Down, Value Up, mode, Enter
• Indicators: LED Display
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Power consumption: 100W
• Fuse: F2AL / 250 V
• Power connector: IEC power input and output
• Housing material: ABS plastic, metal
• Cabinet colour: black
• Cooling: fan
• Illuminance: 24500lx @ 1m
• Luminous flux: 650lm
• Width: 165mm
• Height: 280mm
• Depth: 155mm
• Weight: 3kg

Specs:

• Beam: Spot
• Light source: LED White
• Colour mixing: Up to 9 Color Wheels
• Gobo: up to 6, static
• Focus: yes, manually
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (1.02 MB)
