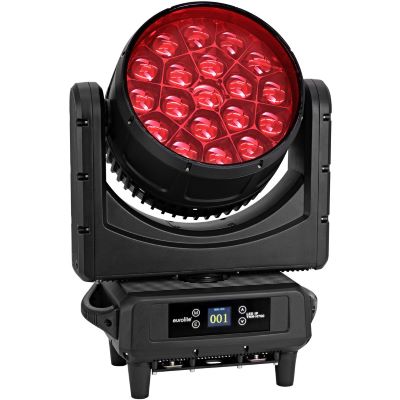

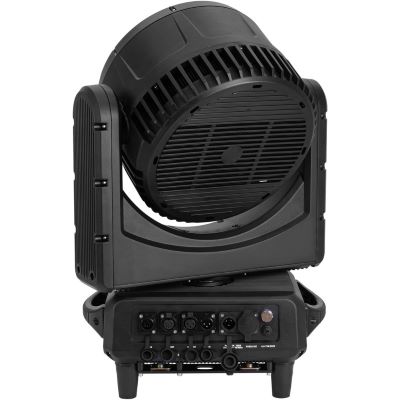

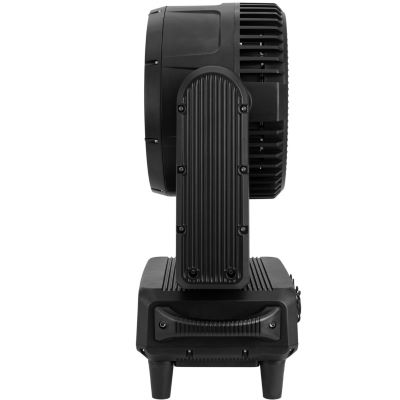

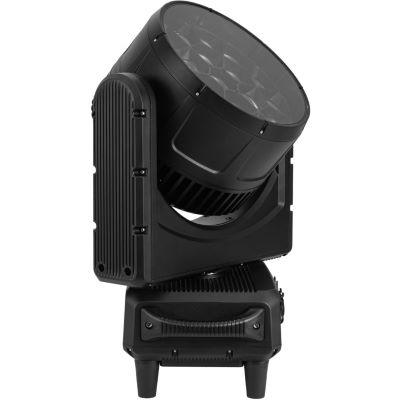

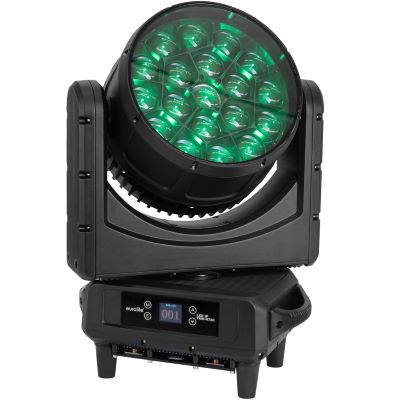

EUROLITE LED IP TMH-H760 Beam/Wash/Flowereffekt

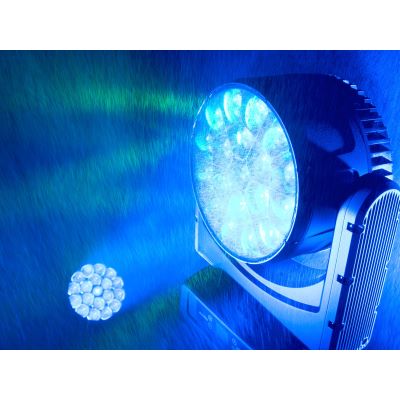

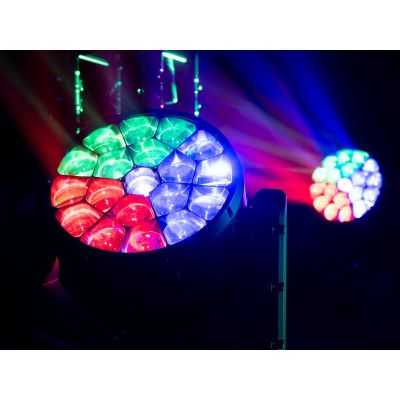

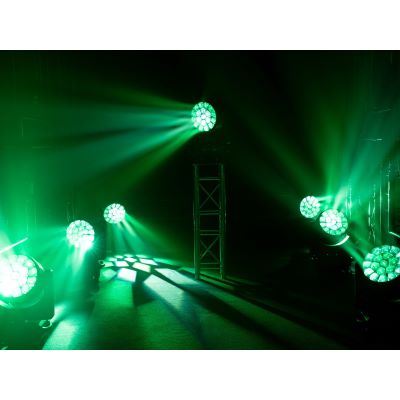

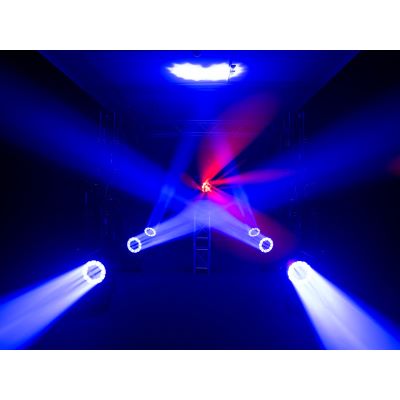

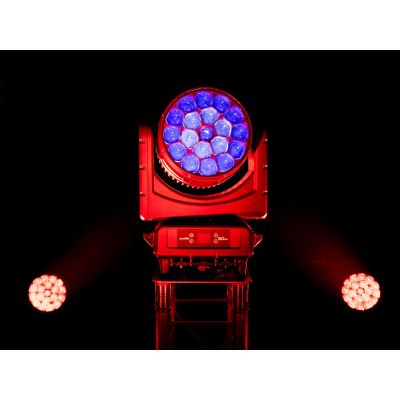

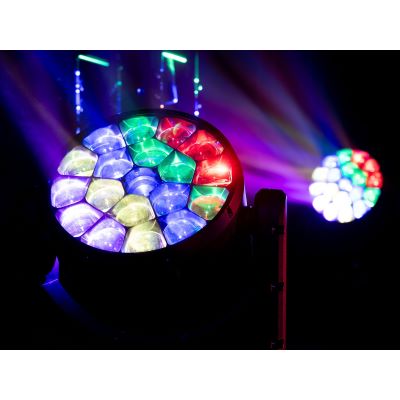

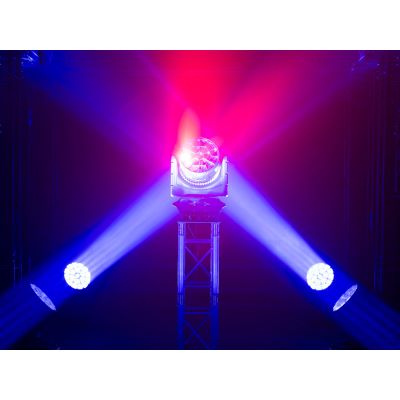

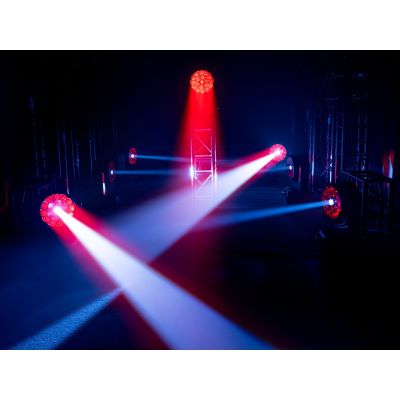

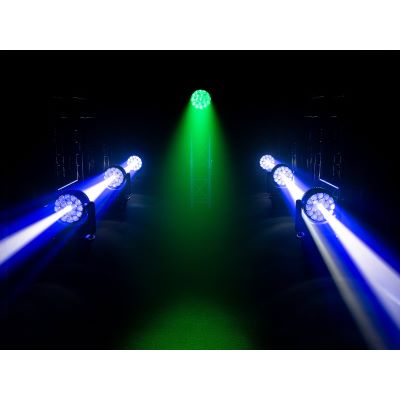

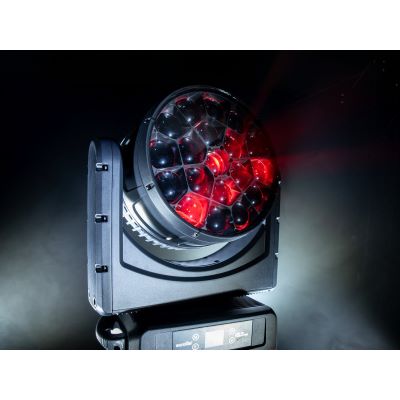

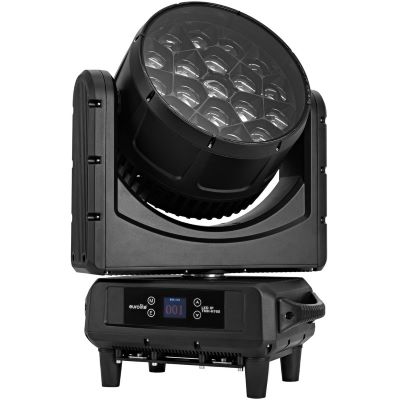

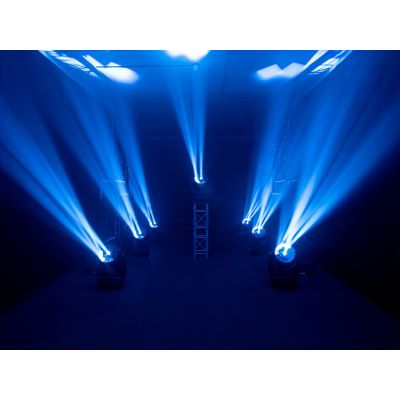

The EUROLITE LED IP TMH-H760 beam/wash/flower effect is a powerful, weatherproof moving washlight. Equipped with 19x 40W RGBW LEDs, it offers an impressive variety of effects, including a rotating flower effect, strobe effect and wash effect. Thanks to the individually controllable LEDs and pixel control, creative lighting designs are easily possible. With a variable beam angle of 2° to 30°, the light adapts perfectly to any stage situation. The practical bracket with hinged hooks enables flexible mounting - whether standing or flying. The device also impresses with its very quiet operation, ideal for noise-sensitive environments.

Features:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 780 W

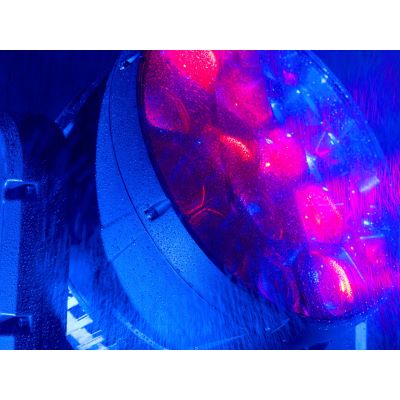

• Protection class: IP65
• Protection class: SK I
• Power connection: Power supply via IP T-Con (M) power connection cable with earthing contact plug
• Cable construction: 3 × 1.5 mm² H07RN-F
• Power output: IP T-Con (W) built-in version
• Fuse: 5 × 20 mm, T 8 A replaceable fuse
• Lamp type: LED lamp
• LED: 19 × 40 W SMD 4in1 QCL RGBW (homogeneous color mixing)
• Max. Tilt movement TILT: 210° Exact positioning (16-bit resolution) Auto position correction (feedback)
• Max. PAN: 540° Exact positioning (16-bit resolution) Auto position correction (feedback)
• Flash rate: 1 - 20 Hz
• Features: Zoom motorized rotation; lens rotation
• DMX channels: 18; 30; 94
• DMX input: 3-pin XLR (M) installation version IP; 5-pin XLR (M) installation version IP
• DMX output: 3-pin XLR (W) installation version IP; 5-pin XLR (W) installation version IP
• Cooling: 2 x temperature-controlled fans in the head; 2 x fans in the base
• Control: Stand-alone; DMX; master/slave function
• Projection: Flicker-free
• DMX failure mode: Hold; zero
• Beam angle: 2° - 30°
• Beam angle (1/2 peak): 2 - 16°
• Beam angle (1/10 peak): 7 - 30°
• Service life: 10000 h
• Housing color: Black
• Mounting system: Ø 50 mm

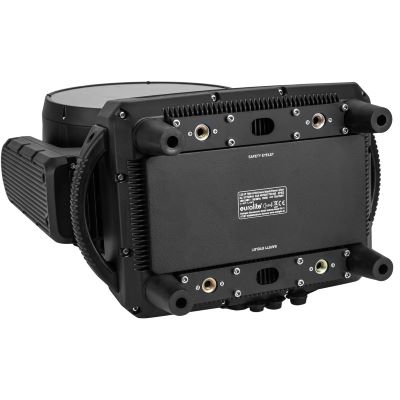

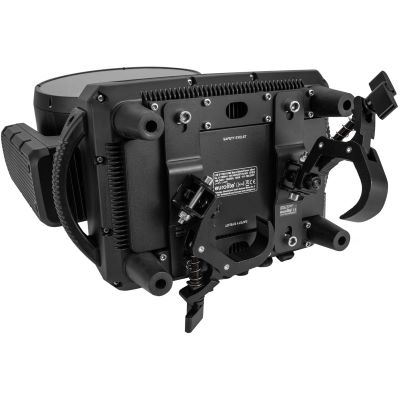

• 2x bracket with hinged hooks
• Display type: Multicolor LCD display
• Carrying handle: 2 pieces
• Transport aid: 4 x rubber feet
• Brand use: SEETRONIC plug connection installed
• Material: Cast aluminum
• Width: 41.0 cm
• Depth: 24 cm
• Height: 55.5 cm
• Weight: 24.60 kg
• Noise classification: Class 1 (very low noise, suitable for noise-sensitive environments) depending on the mode used; class 3 (clearly perceptible noise)

Scope of delivery:

• 1 x moving light
• 1 x operating instructions
• 1 x mains cable/power cable
• 1 x XLR cable

Specs:

• Beam: Wash
• Light source: LED RGBW
• Colour mixing: LED
• Gobo: more than 6, rotating
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Lighting Effect
• Theme: Light and Show
