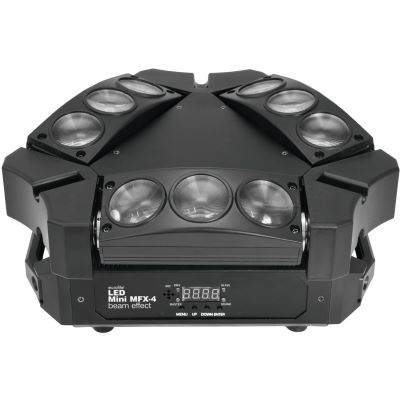

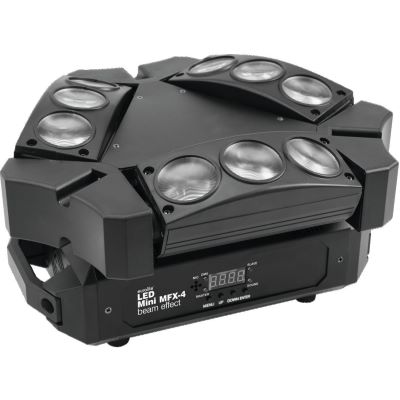

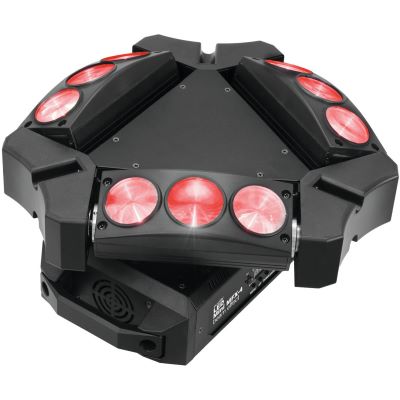

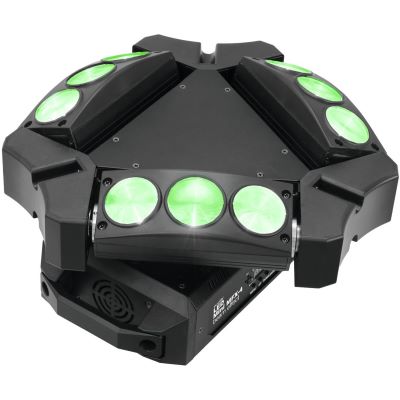

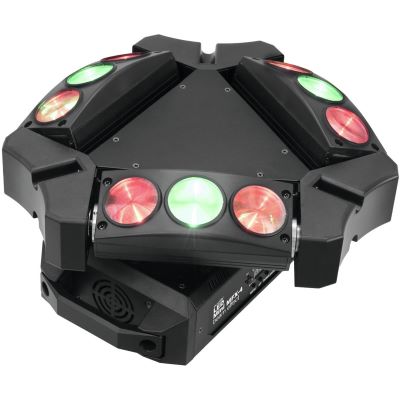

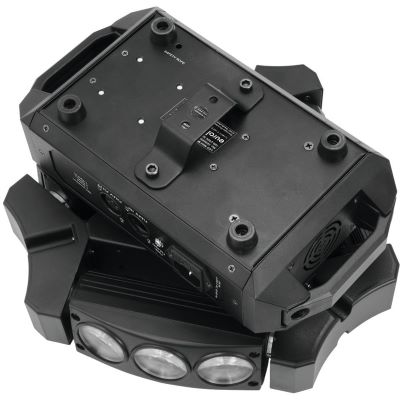

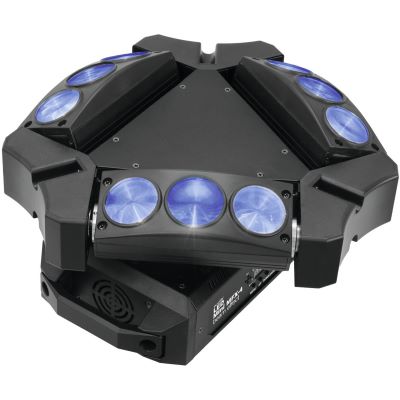

EUROLITE LED Mini MFX-4 Strahleneffekt

Features:

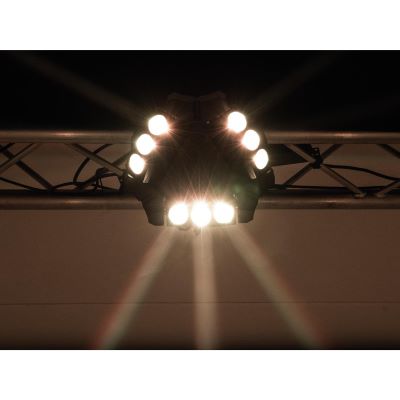

• Beam effect with 9 Fresnel lenses and 10 W quadcolor LEDs in RGBW colors
• Each LED can be controlled individually
• TILT movement for each LED bar separately and steplessly adjustable
• With Infinity function for unlimited PAN movement
• Positioning within 630° PAN and 90° TILT
• 16 or 48 DMX channels selectable
• Functions: Colored beams in R, G, B and W, stepless RGBW color mixture, color change, auto mode, sound control, Master/Slave function, internal programs, strobe effect with adjustable speed, dimmer
• Flicker-free projection
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Sound-controlled via built-in microphone
• Control board with LED display for adjusting the DMX-starting address, PAN/TILT reverse, reset
• Switch-mode power supply for operation between 100 and 240 volts
• Ready for connection with power cord and safety plug
• DMX512 control possible via any commercial DMX controller
• Power supply: 100-240 V AC, 50/60 Hz ~
• Power consumption: 100 W
• DMX control channels: 16/48

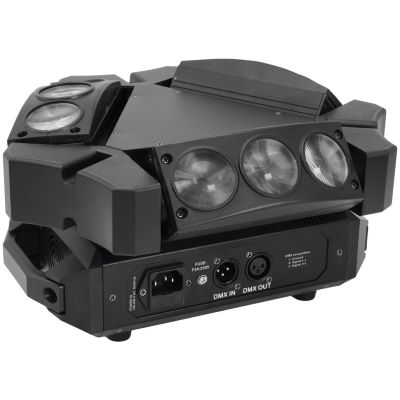

• DMX512 connection: 3-pin XLR
• Sound-control: via built-in microphone
• Flash-rate: 10 Hz
• LED type: 10 W QCL, RGBW
• Number of LEDs: 9
• Maximum PAN-movement: unlimited
• Maximum TILT-movement: 90°
• Dimensions (LxWxH): 285 x 285 x 155 mm
• Weight: 4.8 kg
• Ecodesign regulation
• Not designed for household room illumination
• Purpose: Show effect lighting

Specs:

• Steuerung DMX: yes
• Light effect type: Beam Effect
• Light source: LED RGBW
• Montageart: flexible Deployment
• Type: Lighting Effect
• Theme: Light and Show
