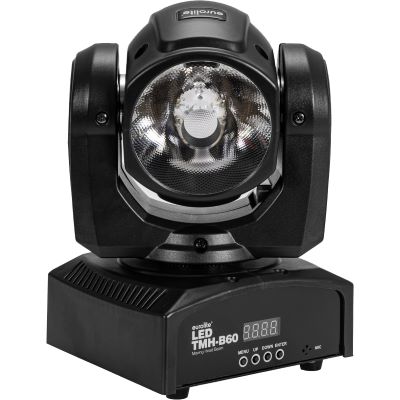

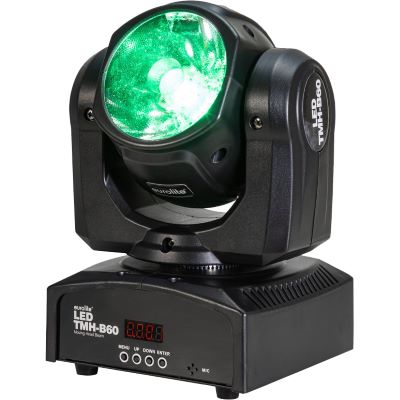

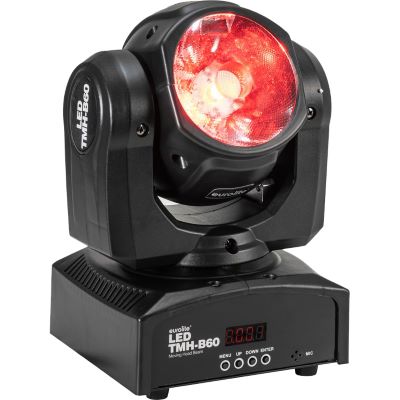

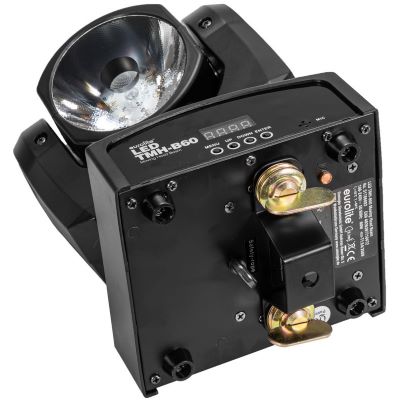

EUROLITE LED TMH-B60 Moving-Head Beam

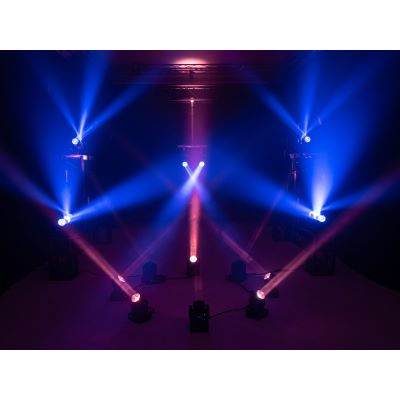

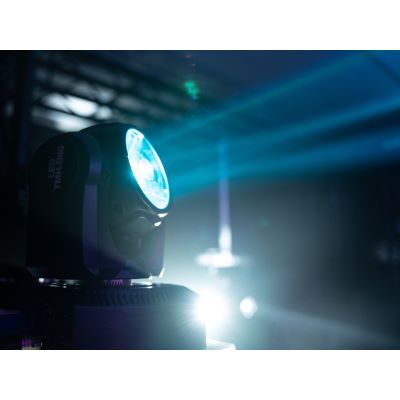

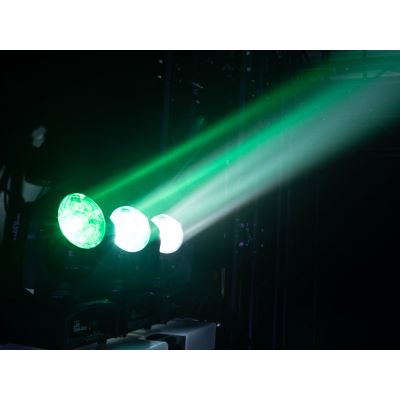

The EUROLITE LED TMH-B60 moving head beam with 60 W COB LED is a compact lightweight that offers impressive performance. With beam effect and strobe effect, it creates fascinating lighting effects. Enjoy the versatility of 4 integrated show programs. The device is cooled via the fan.

Features:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 60 W
• Protection class: IP20
• Protection class: SK I

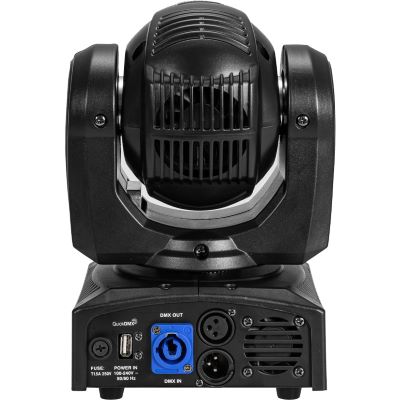

• Power connection: Power supply via P-Con (blue), built-in version power connection cable with earthing contact plug (supplied)
• Fuse: 5 x 20 mm, T 1.5 A replaceable fuse
• Lamp type: LED lamp
• LED: 1 x 60 W COB (chip-on-board) 4in1 QCL RGBW (homogeneous color mixing)
• Max. Tilt movement TILT: 180° Positioning
• Max. PAN movement: 540° positioning
• DMX channels: 12; 14
• DMX input: 3-pin XLR (M) built-in version
• DMX output: 3-pin XLR (W) built-in version
• Cooling: Fan
• Control: Stand-alone; music control via microphone; master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional)
• Pre-programmed with: Light'J; Light Captain
• Beam angle: 2°
• Beam angle (1/2 peak): 2°
• Beam angle (1/10 peak): 5°
• Every 3 m: 17330 lx, 6 m: 4405 lx
• Housing color: Black
• Display type: 4-digit 7-segment LED display
• Transport aid: Rubber feet
• Dimensions (WxDxH): 17.5 cm x 15.0 cm x 25.0 cm
• Weight: 3.25 kg

Specs:

• Beam: Wash
• Light source: LED COB
• Colour mixing: LED
• Gobo: none
• Focus: no
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show
