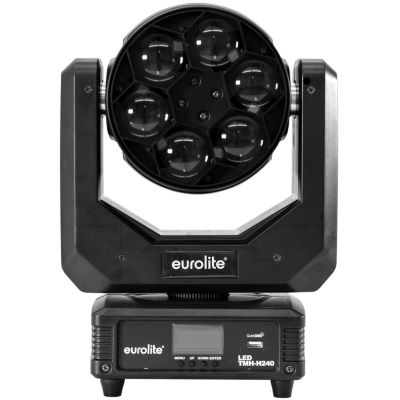

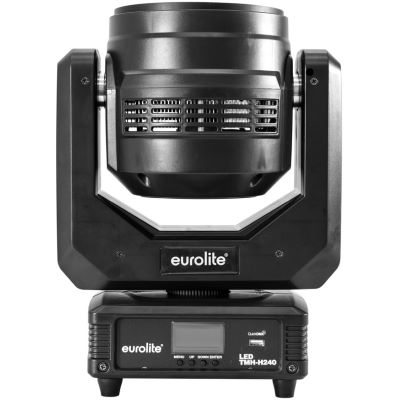

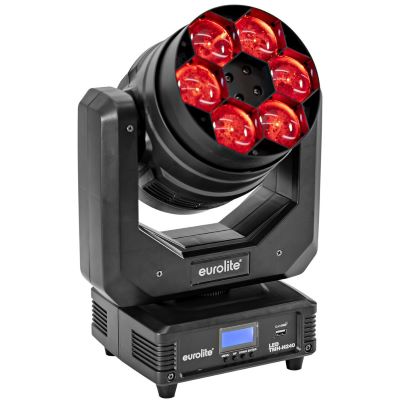

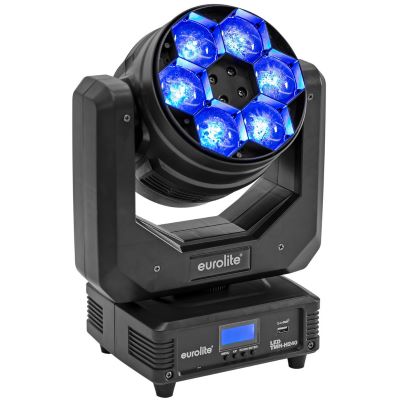

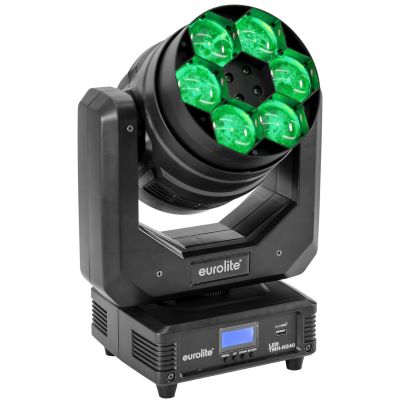

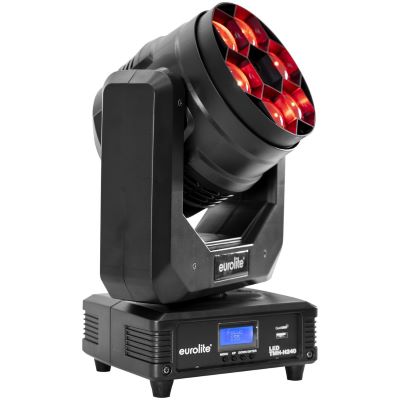

EUROLITE LED TMH-H240 Hybrid Moving-Head Beam/Wash/Flowereffekt

EUROLITE presents a high-quality hybrid moving head with RGBW LEDs, zoom, macros, patterns and color temperature presets. Each LED can be controlled separately via DMX. The moving head has first-class features such as motorized zoom, lens rotation, continuous color mixing, color change, preset colors, color temperature adjustment, pattern and flower effects, backlight. In addition, a strobe effect with variable speed and random strobe effects is included. Composed of 6 powerful "40W 4in1 QCL RGBW" LEDs (with homogeneous color mixing), the spotlight is a perfect match for any lighting application.

Features:

• EUROLITE - LED TMH-H240 Hybrid Moving-Head Beam/Wash/Flower Effect.
• 3-in-1 moving head - beam, wash and flower effect in one unit
• Each LED separately controllable via DMX
• Motorized zoom, lens rotation, continuous color mixing, color change, preset colors, color temperature adjustment, pattern and flow effects, backlighting
• Strobe effect with variable speed, random strobe effects
• Dimmer speed (step response) adjustable
• Mains input and output for easy interconnection of up to 8 devices
• 6 powerful LEDs 40 W 4in1 QCL RGBW (homogeneous color mixing)
• Positioning within 540° PAN and 240° TILT
• PAN angle switchable between 540°and 360
• Auto position correction (feedback)
• Exact positioning (16-bit resolution)
• Integrated show programs
• Operable in 16; 21; 24; 32; 56 CH DMX mode
• Unit cooling via fan temperature controlled
• Controllable via stand-alone; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/Slave function
• Already pre-programmed with Light Captain
• Flicker-free
• Effect: Stroboscope effect; Fan effect
• With a beam angle of 2° - 40

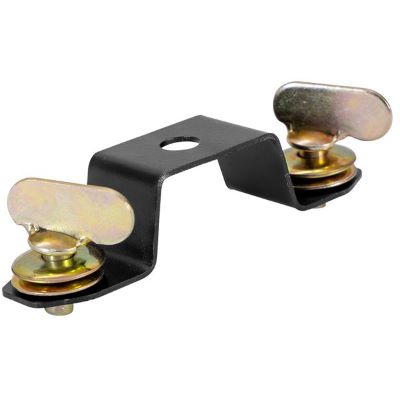

• With omega bracket
• LCD display

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 190 W
• Protection class: IP20
• Protection class: SK I

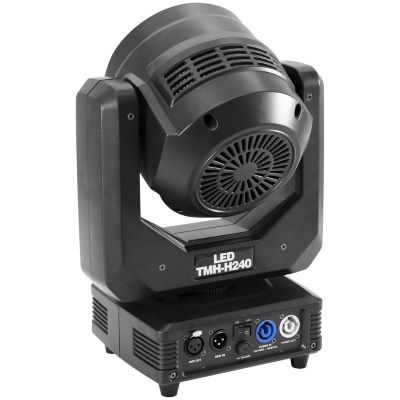

• Power connection: Power supply via P-Con (blue), built-in version Power connection cable with safety plug (included)
• Power output: P-Con (gray), built-in version
• Fuse: 5 x 20 mm, T 3 A
• Lamp type: LED lamp
• LED: 6 x 40 W 4in1 QCL RGBW (homogeneous color mixing)
• Max. TILT: 240° Exact positioning (16-bit resolution) Auto position correction (feedback)
• Max. PAN: 540°, 360° Exact positioning (16-bit resolution) Auto position correction (feedback)
• Flash rate: 1 - 25 Hz
• DMX channels: 16; 21; 24; 32; 56
• DMX input: 3-pin XLR (M) built-in version
• DMX output: 3-pin XLR (W) built-in version
• Cooling: fan temperature controlled
• Control: stand-alone; music control via microphone; DMX; Light Captain; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
• Beam angle: 2° - 40
• beam angle (1/2 peak): 2 - 25°
• beam angle (1/10 Peak): 8 - 40°
• Illuminance in lux (lx): Eng red (R) 1m: 11423 lx, 3m: 5703 lx, 6m: 1423 lx Eng green (G) 1m: 28573 lx, 3m: 11882 lx, 6m: 2992 lx Eng blue (B) 1m: 3089 lx, 3m: 1835 lx, 6m: 513 lx Eng cool white (CW) 1m: 35392 lx, 3m: 15489 lx, 6m: 3899 lx Eng all 1m: 67721 lx, 3m: 30843 lx, 6m: 7807 lx
• Housing color: Black

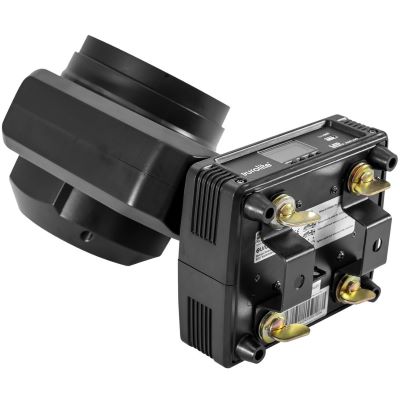

• Mounting system: 2x Omega bracket
• Display type: LCD display
• Dimensions: Width: 26 cm
• Depth: 18 cm
• Height: 33 cm
• Weight: 6,10 kg
• Legal specifications
• Special product: Not intended for room lighting in households
• Intended use: lighting for show effects

Specs:

• Beam: Spot / Wash
• Light source: LED RGBW
• Colour mixing: LED
• Gobo: none
• Focus: no
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show
