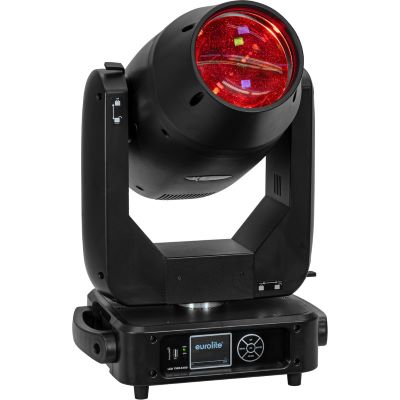

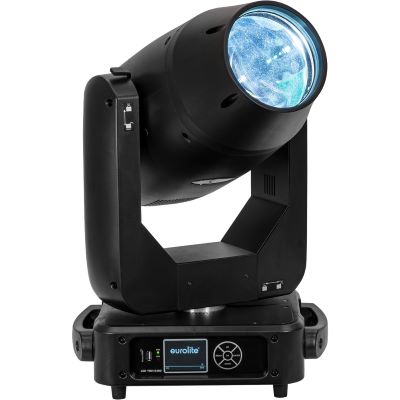

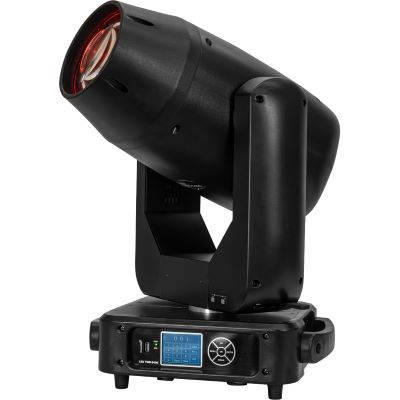

EUROLITE LED TMH-S400 CMY Moving-Head Beam/Spot/Wash

EUROLITE LED TMH-S400 CMY moving head beam/spot/wash: LED moving head hybrid for professional applications

The EUROLITE LED TMH-S400 CMY is a state-of-the-art LED moving head hybrid that combines beam, spot and wash light in one device. Equipped with a powerful 400-watt COB LED and versatile effects, it is ideal for professional stage and event lighting. Whether at concerts, weddings, galas or on stage, this moving head offers flexible control options and impressive light output.

Eurolite: Quality and innovation in lighting technology

Eurolite is known for innovative lighting solutions that meet the high demands of event technicians. With the LED TMH-S400 CMY, Eurolite is launching a product on the market that impresses with its technical versatility and robust design. This device has been specially developed for use in demanding environments and meets all the requirements of modern lighting design.

Technical details and functions of the EUROLITE LED TMH-S400 CMY

The EUROLITE LED TMH-S400 CMY relies on a 400 watt COB LED for powerful light output. Thanks to a motorized zoom with an adjustable beam angle of 6° to 32° and motorized focus, both pinpoint beams and wide-area wash effects can be achieved. The exact positioning of the head is achieved via 16-bit resolution, and the auto-position correction ensures that the moving head always works reliably.

Control and integration

With numerous control options, including DMX, RDM and optional wireless control (QuickDMX, W-DMX or CRMX), the TMH-S400 integrates seamlessly into existing lighting control systems. Pre-programmed scenes simplify operation, while the RDM function enables bidirectional communication. The DMX failure mode offers safety by allowing the lighting to be set to "hold" or "zero" if the connection is lost.

Design and robustness

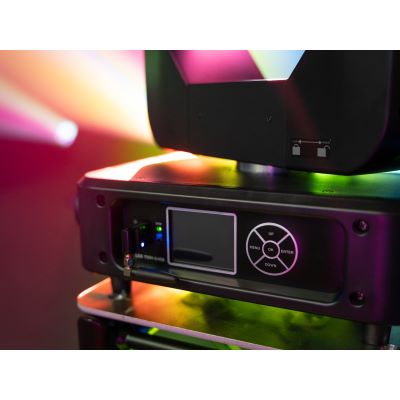

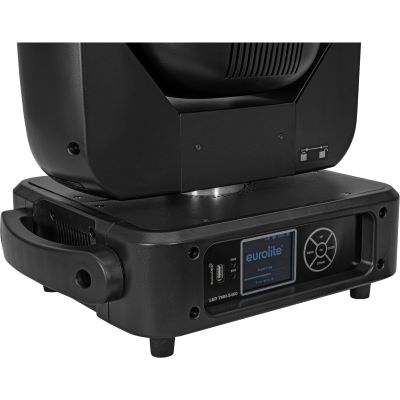

The sturdy metal construction of the moving head, the omega brackets and the carrying handles guarantee easy handling and transportation. A color touchscreen display facilitates configuration and provides direct access to all functions. Thanks to its IP20 protection rating, the TMH-S400 is ideally suited for indoor use.

Recommended purchase

The EUROLITE LED TMH-S400 CMY is an excellent choice for lighting designers, event technicians and event organizers. With its impressive LED output, versatile effects and extensive control options, it meets the requirements of demanding lighting tasks. Whether at events, on stage or for mobile applications, the TMH-S400 is a reliable partner.

Features:

• 1 x 400 W COB (chip-on-board) cool white LED
• Beam angle from 6° - 32
• CMY color mixing for unlimited color variations
• Color wheel with 12 dichroic colors and open
• Gobo wheel with 12 static gobos and open
• Gobo wheel with 7 rotating gobos and open
• Slot-in gobo system for quick gobo changes
• Shake effect
• Spot effect
• Frost filter for soft wash effects
• Motorized zoom
• Motorized focus
• 6x rotating linear prism
• 8-fold rotating prism
• Adjustable dimmer curves
• Flicker-free projections
• DMX control (22 or 25 channels)
• QuickDMX, W-DMX and CRMX (via USB, optional)
• RDM-capable for bidirectional communication
• DMX failure mode (hold or zero)
• Auto position correction
• 16-bit resolution for precise positioning
• Pan movement (PAN) up to 540°
• Tilt movement (TILT) up to 220°

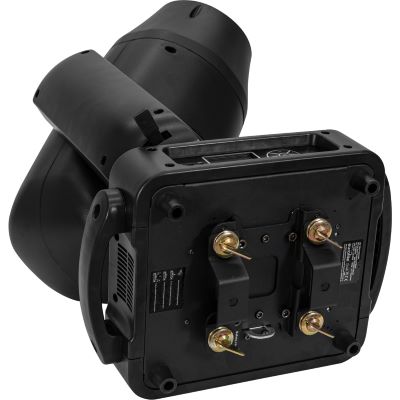

• Omega bracket for flexible mounting
• Robust metal housing
• Color touchscreen display
• 2 ergonomic carrying handles
• Rubber feet for a secure stand

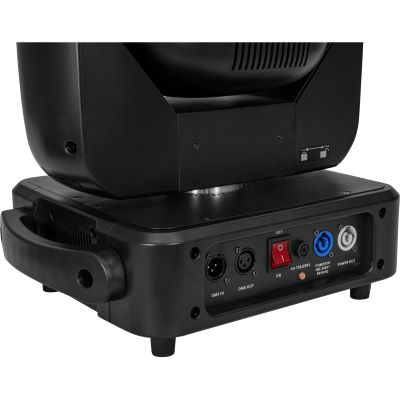

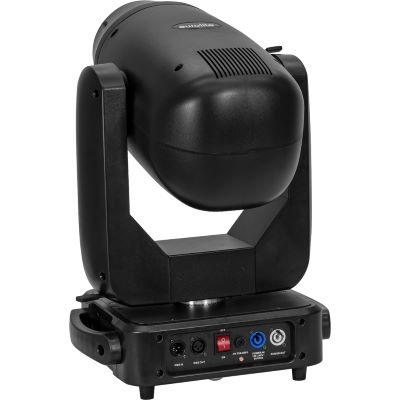

• Power Twist In/Out for easy daisy chaining of up to 4 devices
• DMX forwarding for up to 32 devices
• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 460 W
• Protection class IP20
• Dimensions: 38 x 27 x 65 cm (W x D x H)
• Weight: 23.25 kg
• Scope of delivery: Moving light, operating instructions, mains cable, 2 omega brackets

Specs:

• Beam: Spot / Wash
• Light source: LED COB
• Colour mixing: more than 9 Color Wheels
• Gobo: more than 6, rotating
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show
