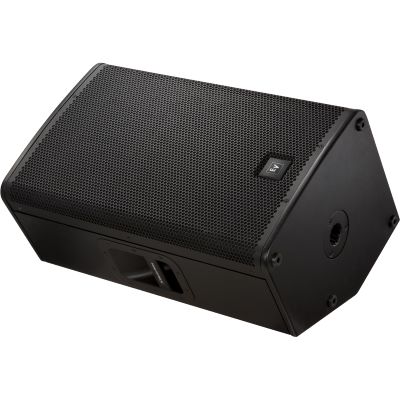

EV Electro Voice ELX 115 (passiv)

The ELX115 is a 15” Two-Way Passive Loudspeaker. As a powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-fre-quency response for bigger sound in larger rooms.

Features:

• More power, fuller sound for larger rooms
• EVS-15K woofer
• 1.5-inch DH-1K titanium HF compression driver
• 50 Hz – 20 kHz frequency range
• 90° x 50° coverage-pattern waveguide
• 60° Monitor Angle
• 134 dB max SPL
• Power handling: 400 W continuous, 1600 W peak
• Braced 15mm plywood enclosure
• Pole mount or stack with Live X Subwoofers
• Black textured finish

Technical Specificatons:

• Axial Sensitivity(SPL, 1 W @ 1 m): 95 dB
• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
• Color: Black
• Speaker Type: Full-range, mid-high, two-way
• Woofer Size: 381 mm (15")
• Frequency Response (-3 dB): 75 - 18000 Hz
• Frequency Response (-10 dB): 50 - 20000 Hz
• Internal Crossover: Yes
• Recommended High-Pass Frequency: 40 Hz
• Max. SPL/1m (calc): 134 dB Half Space
• Coverage (Nominal -6 dB): H 90 °
• Coverage (Nominal -6 dB): V 50 °
• System Power Handling (Continuous/Program/Peak): 400//1600 Watts
• LF Transducer: (1) EVS-15K, 381mm (15") Woofer
• HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency: 17000 Hz
• Nominal Impedance (Passive): 8 Ω
• Minimum Impedance: 7.4 Ω

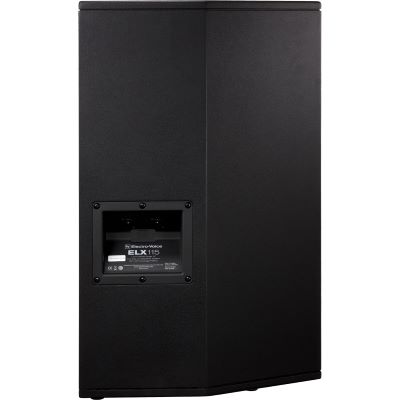

• Connector Type: Parallel Neutrik® NL4
• Grill: 18GA Steel with Black Powdercoat
• Height: 708 mm (27.87")
• Width: 432 mm (17.01")
• Depth: 382 mm (15.04")
• Weight Net: 21.9 kg (48.28 lbs)

Specs:

• Impedance: 8 Ω
• Power: 800 W
• Housing Material: MDF
• Pole Mount: yes
• Airworthy: no
• Woofer: 1 x 15
• Tweeter: 1 x 1,5
• Set Offer: no
• Type: Full Range Speaker
• Theme: PA and Sonication
