Neumann MCM 114 Set Guitar

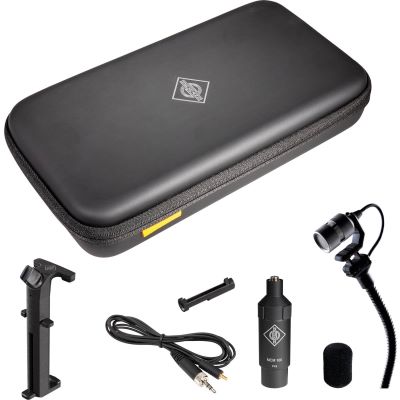

With the MCM 114 MC 9 you get a complete set for mounting on the frame of a guitar, ukulele, dobro, acoustic bass or cello. The set includes the following components: Capsule KK 14, Gooseneck SH 150, Cable clip KC 1, Cable AC 31, Power amplifier MCM 100, Windscreen WS 110, Clamp MC 9. Supplied in a practical soft case.

The latest benchmark for close miking

The Miniature Clip Mic MCM system sets the bar high for eletret microphones. In typical Neumann fashion, the system perfectly reproduces the characteristic sound of acoustic instruments in live performance. In doing so, it defines new standards, e.g. for natural sound, ease of use, reliable mounting and durability. The nine instrument-specific mounting clips are suitable for a wide range of acoustic instruments. Thanks to the overall modular concept, the individual components are easy to replace and guarantee an extremely attractive return on investment.

The Kaspel: The eight-piece master class

A new level of tonal balance, a more natural bass and midrange, and tranparent highs: The newly developed KK 14 with cardioid pickup pattern leaves behind previous limitations of the electret principle and fully reproduces the characteristic sound of acoustic instruments. Neumann has developed a unique, layer-based design for this purpose. In this process, all components have been designed for optimal performance, are individually manufactured, and then assembled by hand. Strict quality control guarantees an unprecedented level of sonic consistency: each capsule sounds exactly the same and delivers a typically neutral Neumann sound. This saves time during setup and sound checks, since manufacturing tolerances no longer have to be compensated for by EQ. With extremely low self-noise (23 dBA) and a maximum sound pressure level of 153 dB SPL, the KK 14 delivers perfect sound with both very quiet and very loud instruments. The titanium cabinet is extremely rugged and designed for multi-year live use.

Compatibility

The Miniature Clip Mic MCM system includes interchangeable cables for 3.5 mm jack, Lemo, Mini-XLR 4 pin and MicroDot - adapters are not required. The microphone can also be used wired with the MCM 100 output stage and 3.5 mm jack plug.

Features:

• Neumann - MCM 114 Set Guitar
• Acoustic mode of operation: pressure gradient receiver
• Polar pattern: cardioid
• Frequency response: 20 Hz ... 20 kHz
• Field transfer factor at 1 kHz at 1 kOhm: 2.8 to 4.4 mV/Pa
• Nominal impedance: 50 Ohm
• Nominal load impedance: 1000 Ohm
• Equivalent noise level, CCIR : 31 dB
• Equivalent noise level, A-weighted : 23 dB
• Noise level separation, CCIR (rel. 94 dB SPL) : 63 dB
• Noise level distance, A-weighted (rel. 94 dB SPL): 23 dB
• Operating temperature range: 0 °C - +40 °C
• Operating humidity range: 0 %...90 % rel. humidity
• Storage temperature range: -20 °C - +70 °C
• Storage humidity range: 0 %...95 % rel. humidity.
• Includes: Capsule KK 14, gooseneck SH 150, cable clip KC 1, cable AC 31, output stage MCM 100, windscreen WS 110, clamp MC 9
• Supplied in practical soft case

Specs:

• Color: Black
• Set Offer: yes
• Polar pattern: cardioid
• Converter: Condenser
• Type: Microphone
• Theme: Microphones
