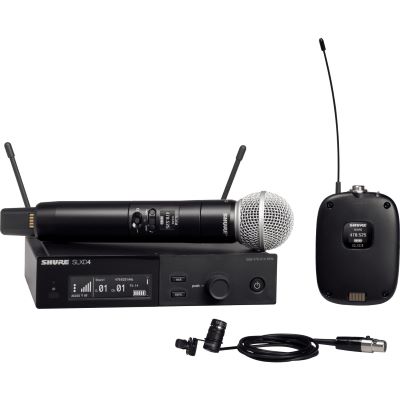

Shure SLXD 124E/85 Kombi-System 823-832 MHz & 863-865 MHz

The professional combination system consisting of the handheld transmitter SLXD 2 in the SM58 version, SLXD 1 bodypack transmitter with WL185 lavalier microphone, mono channel receiver SLXD 4E and accessories from the brand Shure, offers the optimal radio solution for show and stage events. Both the receiver and the handheld transmitter are made of a galvanized metal housing and the bodypack transmitter is made of robust plastic. In addition, the SLXD 4E is equipped with industry-leading digital wireless technology to synchronize with the transmitters via "Scan and Sync" IR connection and to achieve a range of up to 100 meters (max.) with ease.

They feature transparent 24-bit audio quality, easy setup and totally reliable RF performance. In addition, the components are equipped with high-quality LCD displays which provide information on frequency, battery status and other details. The SLXD 2 is equipped with the dynamic SM 58 capsule, which has a cardioid polar pattern. characteristic. The capsule is interchangeable and compatible with all Shure microphone heads. The directional characteristic of the lavalier microphone also has a cardioid pick-up pattern.

The included accessories include an antenna, accessories for rack mounting and four AA batteries.

Features:

• 24 bit resolution
• Bandwidth: over 200 kHz
• Dynamic range: 120 dB
• Range: up to approx. 100 m
• Frequency range 823-832 MHz & 863-865 MHz
• Extended transmission range from 20 Hz to 20 kHz (microphone-dependent)
• 44 MHz switching bandwidth (region-dependent)
• Up to 32 channels per frequency band (region-dependent)
• Up to 12 compatible channels per 8 MHz band

SLXD 4E:

• 1-channel receiver SLXD 4E
• 24 bit resolution
• Antenna impedance: 50 Ω
• Antenna connection: BNC
• Single port Ethernet 10/100 Mbps
• Connections: 6.3 mm jack & XLR
• Power supply: 15 V DC (600 mA)
• Material: robust metal housing
• Dimensions (L x W x H): 197 x 152 x 4 mm
• Weight: 816 g
• Color: black

SLXD 2/SM58:

• SLXD 2 handheld transmitter from Shure
• Capsule: SM 58 (dynamic)
• Polar pattern: Cardioid
• Frequency response: 20 Hz to 20 kHz
• Antenna type: Integrated single-band helical antenna
• Operating time: 8 h
• Power supply: optional rechargeable lithium-ion battery SB 903 or 2 x AA batteries 1.5 V
• Material: robust aluminum housing
• Dimensions (∅ x H): 37.1 x 176 mm
• Weight: 147 g
• Color: black

SLXD 1:

• SLXD 1 pocket transmitter
• Antenna type: Quarter wave
• Antenna impedance: 1 MΩ
• Connection: 4-pin mini plug (TA4M)
• Operating time: 8 h
• Power supply: optionally rechargeable lithium-ion battery SB 903 or 2 x AA batteries 1.5 V
• Material: robust PC/ABS housing
• Dimensions (L x W x H): 68 x 25.5 x 98 mm
• Weight: 89 g
• Color: black

Specs:

• Color: Black
• Set Offer: no
• Converter: Dynamic
• Frequency band: n/a
• Type: Radio System
• Theme: PA and Sonication
