Superstereo DN78

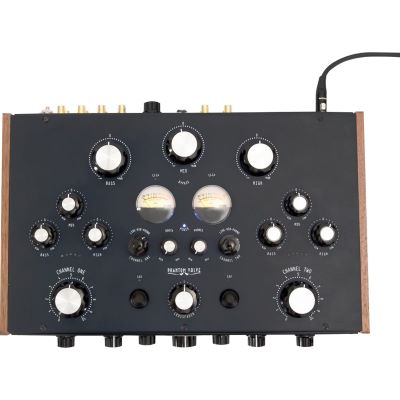

The new DN78 Phantom Valve is an analog DJ desktop mixer with 2 dual input channels, a mono mic channel and 2 stereo USB channels and features rotary faders and a rotary crossfader. The mixer has been designed to the highest audio standards and features a high quality valve stage that adds extra warmth and depth to the sound. The unit is designed for professional DJs, clubs and venues. It is equipped with many features to enhance the DJ's performance and sound.

Gain

A 5-way gain control and 5-point LED indicators on each input channel allow precise adjustment of input signal levels, while smooth "Blue Velvet" rotary faders ensure a perfect mix. Individual channels can be routed to either side with the rotary crossfader.

ISO frequency chart

The DN78 is also equipped with a very powerful isolator at the output, providing a boost and cut function with +8db for three carefully selected frequencies. There is also a mid-range selection control that allows further reduction of the low frequency range up to the high frequencies. These filters have a wide Q range to ensure they cover the full spectrum of sound.

Phono Stage

There are two high quality phono preamps with standard RIAA EQ to ensure faithful reproduction from a standard MM record cartridge, which can also be switched to line input levels for convenience.

USB

The DN78 Phantom Valve is equipped with a high-quality 32bit/384khz four-channel sound card for easy integration of digital media. The USB interface can be used for playback from most popular DJ software platforms on MAC and PC.

Microphone input

A high quality MIC channel with a single gain control on the rear panel provides up to 56db of gain and delivers the signal into the stereo mix.

FX Send & Return

There is also a stereo effects send and return, allowing a signal to be fed into an external effects unit before the isolator and routed behind the isolator using a stereo return. Individual levels for both are adjustable from the front panel. The effects return can also be used as an additional stereo source input for line level signals.

Headphones

A powerful headphone amplifier provides more than adequate monitor levels for all types of headphones, with a separate cue/mix crossfader to control the output mix.

Master & Booth

Finally, there's a master section with a powerful 4-way output with separate Booth and Master level controls. Both outputs feed RCA and fully balanced outputs designed to drive long cables and provide more than sufficient levels to drive almost any amplifier setup.

Level Meter

Professional stereo VU meters display master output levels, they provide a more accurate level indication than led meters. Therefore, two -20 - +6db analog VU meters have been included to provide a more accurate output level measurement with an additional clip level meter to keep the sound clean.

The knobs

Black fluted knobs Silver Center, 16mm, 27mm, 33mm are very popular as they provide accurate level control. Vintage RCA Viz Knobs have a very classic look and are very precise.

The Potentiometers

All potentiometers are made by ALPS, a Japanese company founded in 1948 and one of the most important electronics manufacturers around. The smooth feel of these potentiometers makes them a pleasure to turn and allows for precise control.

Features:

• A rotatable cross-fader between CH1 + CH2.
• 5 LED input monitor VU meters for each channel
• Input gain control with up to 5x gain
• A headphone cross-fader control between the output and cue channels
• PFL cue control with push buttons
• 2-channel stereo mixer
• Tube output stage
• 3-band 'isolator' on the output
• 3-band EQ control on each channel
• RCA and XLR balanced output levels (booth & main outs)
• 2 line & 2 phono RCA inputs
• 4-channel USB audio (32bit/384kHz output)
• Precise backlit VU meters (output)
• LED Clip Indicator
• Cue Indicator
• Stereo Fx Send & Return
• Powerful headphone output
• High quality Alps 'Blue Velvet' faders
• High quality op-amps for audiophile applications
• High quality toggle switches and knobs
• Wooden side panels

Technical specifications:

• Phono Stage: RIAA 47kohm, S/N 102dB 3 to 100mV. 300pf, Moving Magnetic pickup. MC switch optional - 100 - 300 uV - 300pf. Standard RIAA curve. Switchable to Line Inputs
• Line In: more than 47k ohm -10 to +15dBu. S/N 104dB
• USB Audio: 32 bit @ up to 384khz. 2 x 2 In. S/N less than 112 dB D/R. Win & MacOSx - NO drivers required for Apple Mac
• Microphone Input: greater than 600 ohms, -47dB to -10dB. Gain +60dB
• MIX Out: (XLR) Servo balanced XLR connector more than 600 ohms +4dBu
• BOOTH Out: (XLR) Servo balanced XLR connector more than 600 ohms +4dBu
• MIX OUT & BOOTH Out: Unbalanced, RCA. 0dB 47 ohm
• max. output level: (XLR) Booth and Master. +24dB
• max. output level: (RCA) Booth and Master. +20dB
• Effects send: 47K Ohm, +18dB. Stereo TRS, Tip L, Ring R
• Effects return: 4.7K ohms, -20dB to +20dB. Stereo TRS. Tip L, Ring R
• Isolator: low 0-280Hz, MID 260Hz - 2K, HIGH 2K - 20k (12db/octave) -inf. to +8dB. Flat in the middle/bypass
• Frequency Response: 4Hz - 28kHz +/- 1db
• 3-band Baxandall EQ per channel: Bass 180hz -26db to +15dB, Mid 900hz +/-12dB, Top 5khz +/-12db.
• Channel gain: -18db - +16db
• Headroom: +25dB
• Noise: -98dB Ave
• Distortion: less than 0.05% THD+noise @1kHz
• Crosstalk: less than -90dB between channel 1& 2
• Signal to Noise Ratio: more than 95db
• Channel separation: more than -85db
• Headphone amplifier: 900mw into 16 ohms. 30 - 120 ohms recommended
• Channel Meter: Peak meter 5 LED -18, -10, -4, 0, +4db.
• Main Meters: Main meters -20dB to +9dB LED CLIP: +9 db
• Record out mini Jack - 0db Impedance 47k - Direct Valve, Fixed Output
• AC Mains: 110 & 240V AC @ 50-60hz
• Consumption: 28W max
• Fuse Rating: 100-250v T600ma
• Mains connection: 3 PIN T5 CABLE
• Dimensions: 330mm x 220mm x 80mm
• Valve: JRP 5760/ 396a / 2c51 double triode, triple silver mica. recommended replacement every 10,000 hours

Specs:

• Channels: 2
• Effect Processor: no
• Talkover: no
• USB Port: yes
• Mic Inputs: 1
• Sound Card: no
• Crossfader adjustable: yes
• Color: Black
• Type: DJ Mixer
• Theme: DJ Equipment
