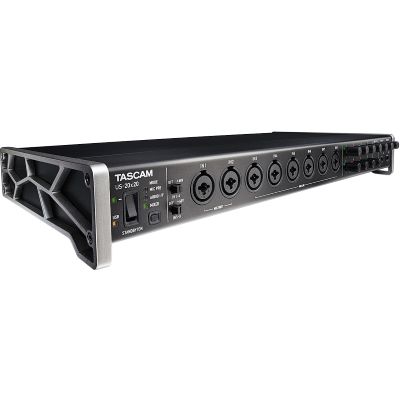

Tascam US-20x20 Audio Interface Product Details
The US-20x20 is the new flagship in the Tascam series of interfaces and another sign of our passion for audio processing. This interface is intended for use in professional recording facilities or project studios and supports sampling rates up to 192 kHz, enabled by USB 3.0, a leading transfer standard for transferring data to and from a computer. Special features such as the operation as a standalone microphone preamp or mixer make the US-20x20 a very versatile tool - far beyond its use as an interface for multi-track recording.
Microphone preamps are the key to the highest audio quality. The eight Ultra HDDA microphone preamps developed by Tascam have an equivalent input noise (ON) of -125 dBu. 20 dB overdrive reserve in the microphone and line inputs provide sufficient safety for overdrive-free recordings even at high level peaks of drums and instruments.
Thanks to a powerful Blackfin processor, the US-20x20 offers a well-equipped DSP mixer with EQ, compression and reverb for each channel. The processor not only impresses with its dynamic processing and effects, but also enables multi-channel transmission via USB 3.0 for work in the studio.
Features:
- High-quality Ultra-HDDA microphone preamplifier with extremely low input noise (ON: -125 dBu)
- Recording with up to 192 kHz sampling rate at 24 bit resolution
- Support for Windows and Mac operating systems
- USB 3.0 connection with a computer for the transmission of 40 audio channels at 44.1/48 kHz or 24 audio channels at 176.4/192 kHz
- 20 inputs / 20 outputs available at 44.1/48 kHz and 24 bit (10 analog channels + 2 digital SPDIF channels + 8 optical channels)
- 16 inputs / 16 outputs available at 88.2/96 kHz and 24 bit (10 analog channels + 2 digital SPDIF channels + 4 optical channels via S/MUX2)
- 12 inputs / 12 outputs available at 172.4/192 kHz and 24 bit (10 analog channels + 2 digital channels)
- Three selectable operating modes: audio interface, standalone microphone preamplifier, digital mixer
- DSP mixer with four-band EQ and compressor in each channel (usable in interface and mixer modes)
- Internal patchbay allows free assignment of outputs (usable in interface and mixer modes)
- DSP mixer settings can be stored in up to 10 scenes
- USB Audio Compliance 2.0 for connection to iOS devices
- Hall effect can be added to the monitoring signal
- Monitoring with low latency via the DSP mixer
- Eight analog, balanced microphone/line inputs (XLR/jack combination jacks) with switchable phantom power (48 volts)
- Electric guitars or basses can be connected directly to inputs 1 and 2
- Two symmetrical jack inputs on the rear panel
- Adjustment range of the input level is 56 dB, so that dynamic microphones can also be well controlled.
- Ten symmetrical jack outputs
- Multi-channel optical digital input and output via TOS LINK connectors (8 channels at 44.1/48 kHz, supports S/MUX4 and S/MUX2)
- Coaxial SPDIF digital input and output
- Wordclock input and output (BNC)
- Two standard headphone jacks with 2 x 70 mW output power
- Separate controls for output level and headphone volume
- MIDI input/output
- Compatible with Sonar, Pro Tools, Cubase, Live, Studio One, GarageBand
- Rack installation kit included in scope of delivery
- Special AC adapter included in scope of delivery
- Enclosure design allows inclined installation with easy accessibility
- Dimensions WxHxD: 445 mm × 59 mm × 222 mm (with mounted standard side panels), 483 mm × 44 mm × 222 mm (with mounted rack mounting brackets)
- weight: 2,8kg
Specs:
- Color: Black
- Rack Mountable: no
- Line Inputs: 10
- Line Outputs: 10
- Mic Inputs: 8
- Phono Inputs: 0
- Instrument Inputs: 0
- digital Output: ADAT / S/PDIF
- digital Input: ADAT / S/PDIF
- Headphone Out: yes
- MIDI Inputs: 1 Port
- MIDI Outputs: 1 Port
- Host Port: USB
- Number of headphone outputs: 2
- Type: Audio Interface
- Theme: Recording and Studio
