TerraTec Phase 22

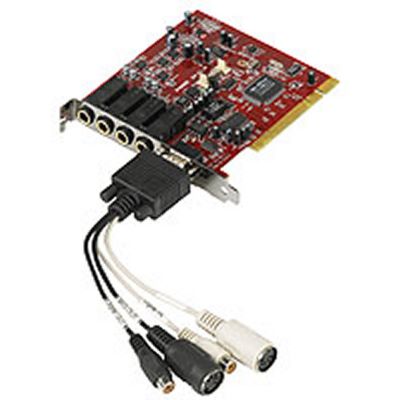

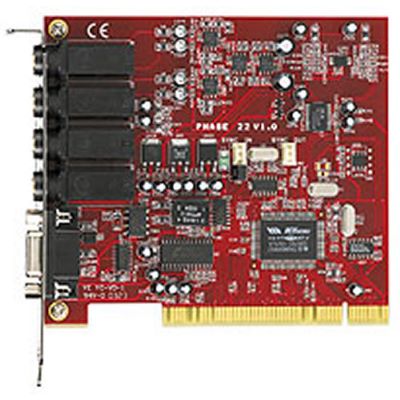

TERRATEC PHASE 22 (PCI-Recording-Interface)

High-grade technology that grows along with your needs –

the start in the world of professional audio cards.

The PHASE 22 rounds out the PHASE family's product pallet – but that does not mean that you have to do

without the accustomed high-class technology of the TerraTec Producer series. The two analog in and

output channels of the PCI audio interface allow contact with the outside world via balanced ¼” (6,3 mm)

TRS jacks with a resolution of up to 24 Bit/96 kHz. An S/PDIF connection creates an interference-free

connection to your digital equipment, and digital playback is even possible at a resolution of up to

192 kHz.High-end converter components ensure an audio quality which meets even the highest studio

requirements. The optimized driver pack ensures extremely low latency times, whether on PC or MAC.

ASIO 2.0 support and delay-free support of multiple inputs and outputs are, of course, featured, as is

problem-free interplay with the Gigastudio format GSIF. Of course, you do not need an extra interface

for your synthesizers any more: a 16-channel MIDI I/O is also provided.

And the best thing about it: if your studio ever grows, and you need more inputs and outputs, you can

quite simply cascade and synchronize up to four PHASE 22 in a computer at once using only one driver.

Or, combine them with the PHASE 28 and enter the world of advanced recording capabilities.

2 balanced analog inputs, ¼" (6,3 mm) TRS jack

2 balanced analog outputs, ¼" (6,3 mm) TRS jack

24 Bit/96 kHz signal processing of the analog inputs and outputs

Coaxial digital interface for S/PDIF, AC3 or DTS formats

MIDI interface

Multiplatform (MAC & PC)

Low latency ASIO 2.0, GSIF and WDM kernel streaming support
