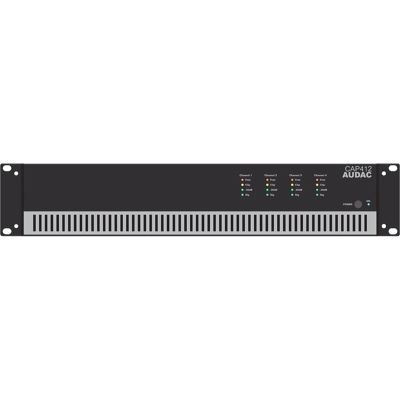

Audac CAP 412 100 V Endstufe 4 Kanal 120 W

The Audac CAP 412 is a professional 100 V power amplifier with 4 channels and an amplifier power of 120 W. The amplifier is designed for use with a wide range of audio and video applications. The flexible, innovative Ela amplifier is therefore recommended for all permanently installed multi-zone audio distribution systems.

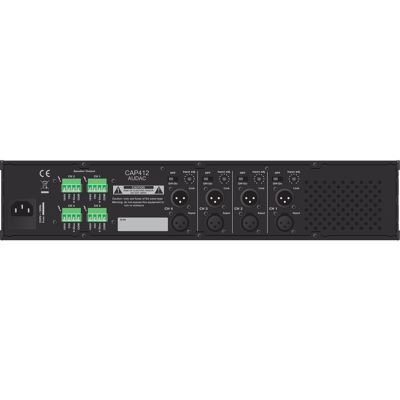

The amplifier is equipped with all important functions and scores with a slim, clear concept, which is characterised by absolutely uncomplicated installation and operation. Each output channel offers different speaker outputs: 100 Volt, 70 Volt and even 4 Ohm for low impedance applications. The inputs are designed as balanced XLR connectors and also allow the signal to be looped through to other amplifiers.

Features:

• Product type: Output stages
• Type: 100 V Installation output stages, 4-channel
• Amplifier power: 4 x 120 W
• Line inputs: 4
• Line input connectors: XLR (balanced)
• Line outputs: 4
• Line output connectors: XLR (balanced)
• Controls: 4 x Gain , 4 x Highpass , Power
• Display elements: 4 x - 20 dB , 4 x Clip , 4 x Protect , 4 x Signal
• Transmission technology: 100 V , 4 Ohm , 70 V
• Speaker outputs: 4
• Speaker output terminals: Phoenix/Euroblock
• Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
• width: 482 mm
• height: 88 mm
• Depth: 433 mm
• weight: 14,78 kg

Specs:

• Color: Black
• Type: Accessories
• Theme: Installation
