Botex Dimmerpack DPX 620 III Klemmleiste
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- Related Products
- more of Botex
- all articles from the category Dimmer and Switchpacks
Botex Dimmerpack DPX 620 III Klemmleiste Product Details
DMX-512 input by 3 pin XLR male x 1 & 3 pin XLR female x 1
- Can be changed to same channel or 6 ch. output by Dip-switch, 50% pre-heat and 6 ch. dimming control with slide-volume controlled, Resetable circuit breaker / Fan cooling / Noise filter circuit / Over heat protection
- Input Signal : 0 - 10V analogue or DMX-512
- Input Socket : 0 - 10V analogue input by (1 x 8 pins Din-plug)

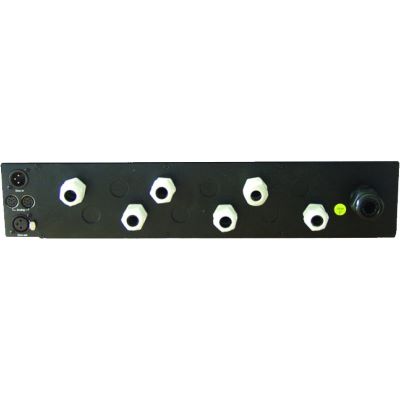

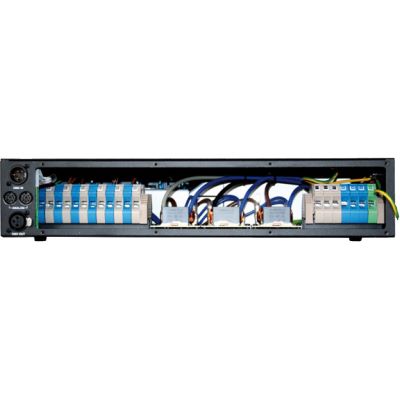

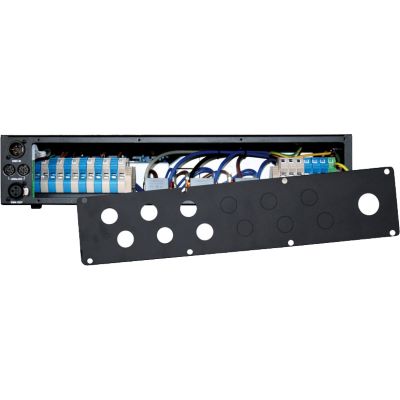

- Output Connector: Terminal block only
- Power Output : 10A / CH., Total 60A (inductive load)
- AC Input : 3 Phase Input / AC 120V~ 60Hz / AC 230V~ 50Hz
- Size : 19" x 2U (482W x 380D x 85Hmm)
- Weight : 7.1Kg
