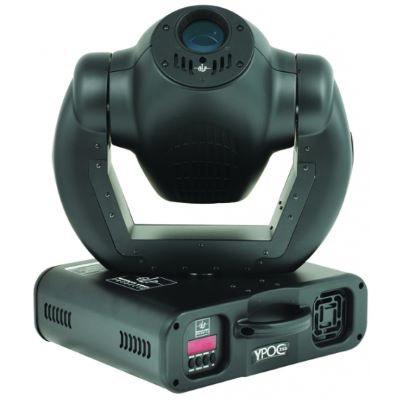

GLP Ypoc 250 Moving Head

YPOC 250 - a compact and high tech moving light!

It features high quality and modern technology. The high brightness in its class is achieved by combining a 250W discharge lamp with a high quality coated optical system.

With all these features, the Ypoc 250 is the ideal fixture to be used on stage, in TV studios, in clubs and discotheques having a state-of-the-art lighting system.

Technical Data

Source:

Lamp:                                      MSD 250/2 Philips, CSD 250/2/SE GE,

HSD 250/78 Osram

Average service life:                  2000h Philips, 2000h GE, 3000h Osram

Color temperature:                       8500k Philips, 8500k GE, 7800k Osram

Luminous flux:18.000lm Philips, 18.000lm GE, 17.000 Osram



Weight and dimension:

Dimension:375 x 430 x 450 mm

Weight: 21,5 kg

Electromechanical effects:

Pan:540° 16bit (position feedback)

Tilt:280° 16bit (position feedback)

Gobowheel:6 rotating and positionable gobos + open

2 glass gobos, 4 metal gobos,

all gobos interchangable

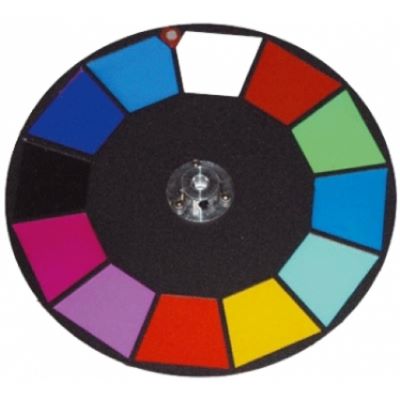

Colorwheel:11 dichroic colorfilter + white, 12 bicolors

slow rotation to fast rainboweffekt

Focus:2 m – infinity (motorized)

Prism:rotating and positionable 3-facet prism

slow to very fast rotation

Dimmer:mechanical dimmer 0-100%

Shutter:mechanical high-speed shutter 0-10Hz

Other effects:

Laser:4,5 mW laserdiode with DMX control

Optical system:

Projection angle:15° (optional 18°)

High quality, coated

condensor optics: high light output with an even lightbeam

Gobos:

Outside diameter:27 mm

Image diameter:max. 23 mm

Thickness stainless steel gobo:0,15 mm

Thickness glass gobo:1,1 mm

Control:

Protocol:USITT DMX 512

DMX-Channels:15

Musiccontrol:internal microphone, master-slave function,

gobo-, colorchange and shutter control

with music

Lamp on/off:by DMX or automatic

User board:



-Easy DMX address setting

-Operation hour meter

-Lamp hour meter

-Temperaturecontrol

-Testmode

-Audiomode

-Manual control of all functions

-DMX-Input value readout

Programming:

-Internal movements

-Separate speed for Pan/Tilt

-Random strobe

-pulse effect

-colorchaser

-goboshake

-Master-Slave function

-Audiomode with different zeroposition and different sizes

-When the DMX-signal is lost the audiomode will be switched on automatically if required (especially for clubs)

 Installation:

-4 x M 10 inserted nut to mount a clamp or half-coupler

-2 x mounting plates for wall mounting

-Any orientation

Power consumption:

-230 V/50 Hz 400 W
