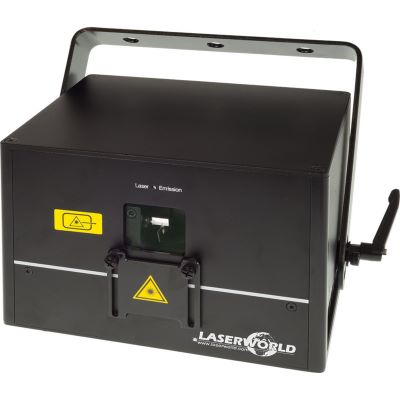

Laserworld DS-3000 RGB ShowNET

The Laserworld DS-3000 RGB ShowNET is a pure and large diode show laser with analog modulation, sealed housing technology and many other functions. The Laserworld diode series was designed as a pure diode solution, resulting in excellent beam characteristics and a very nice analog color modulation. The DS-3000RGB can be controlled via ILDA and also has a standard built-in memory with preset patterns that can be easily recalled via DMX. Operation in automatic and music mode is also possible. The Laserworld DS-3000RGB (ShowNET) comes with an integrated ShowNET network interface and free laser show software. Details in the box below. The diode series is suitable for beginners as well as for professional users, because the devices are easy to operate, very versatile, compact and light. The Laserworld DS-3000RGB has 550 mW red at a wavelength of 638 nm. Green diodes with a wavelength of 520 nm (900 mW) are also integrated. The blue diode has a power of 1'600 mW with 450 nm.

Features:

• Guaranteed optical performance: 2'800 mW
• Power red: 550 mW / 638 nm
• Power Green: 900 mW / 520 nm
• Power blue: 1'600 mW / 450 nm
• Beam parameters (full angle): approx. 4 mm / 1.1 mrad
• Laser sources: diode
• Laser class: 4

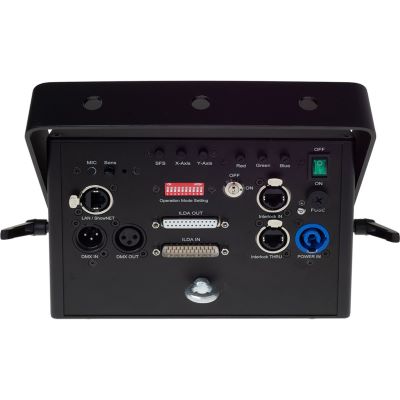

• Operating modes: ILDA, DMX, LAN, ArtNet, integrated SD card, automatic mode, music mode
• Scanner: 30 kpps@8°.
• Scanning angle max.: 45
• Basic pattern: over 120 (planes, tunnels, grids, wave effects etc.)
• Accessories: power cable, operating instructions, key, interlock, hexagon socket key
• Power supply: 85 V - 250 V / AC, 50/60 Hz internal PSU
• Power consumption: 80 W
• Dimensions: 210 x 170 145 mm (L x W x H)
• weight: 4.3 kg

ATTENTION: We would like to point out that this device contains a class 4 laser (according to the classification according to DIN EN 60825-1:2015-07).

Specs:

• Power: 2.8 W
• Type: Laser
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (838.02 KB)
