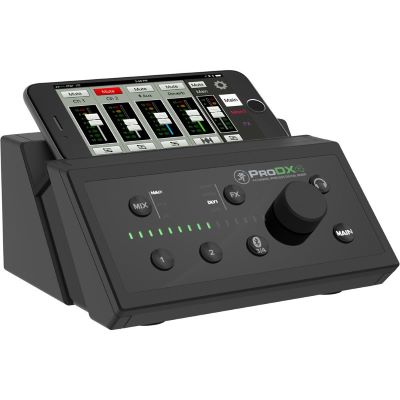

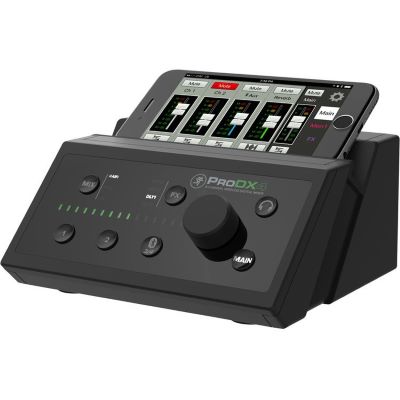

Mackie Pro DX 4

ProDX Series mixers bring powerful wireless digital mixing and streaming to lower channel counts with an intuitive, easy-to-use interface that looks great anywhere. With an essential mixing toolkit and powerful processing plus convenient hardware level control, ProDX is the ultra-compact mixer for the next generation.

Perfect for solo performers, small bands, venues and commercial applications, the ProDX Series combines the wireless control and mixing tools of advanced digital mixers with an incredibly compact and intuitive design that anyone can master. With powerful built-in processing like EQ and compression per channel and great-sounding ReadyFX™ effects, your next performance will sound better than ever. Plus, with Bluetooth® streaming, you can wirelessly play back music or backing tracks right from your phone.

Features:

• Simple and Intuitive

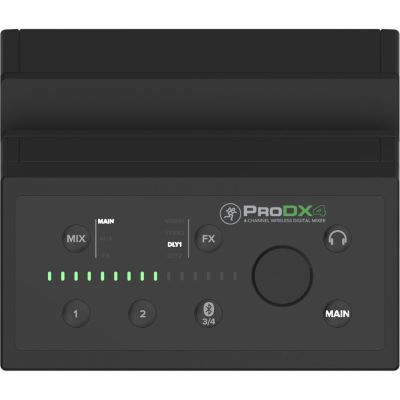

• Control every level from the single knob front panel interface
• Clean and professional design looks great anywhere
• Ultra-compact for effortless transport and a perfect fit in tight spaces

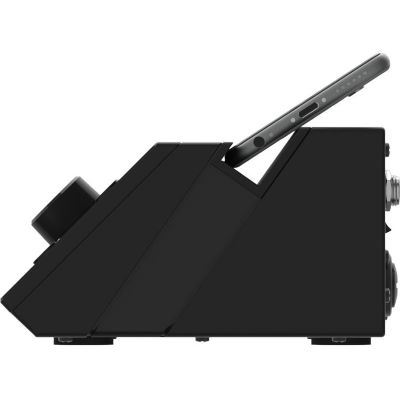

• Integrated control bridge holds your phone for a quick view of your mix
• Wireless Streaming and Control via the MixerConnect™ app on iOS and Android™
• Stream music or backing tracks via Bluetooth®
• Control levels, EQ, effects and more from anywhere
• Recallable mix presets for quick setup
• Place the mixer out of sight without losing any control
• Sound Your Best with Powerful Built-in Processing
• Dial in your sound with musical 3-band EQ with low-cut per channel
• No-hassle channel compression adds punch to any vocal or instrument
• Sweeten your mix with 16 great-sounding ReadyFX™ reverbs, delays and choruses
• Outputs feature a flexible graphic EQ for fine tuning your mix

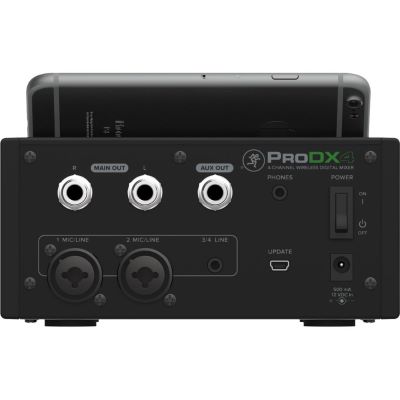

• All the Right I/O
• 2 Wide-Z™ inputs for simple connection of mics, guitars, keyboards and more with no gain adjustments needed
• Connect your media player via the stereo 1/8” input or stream wirelessly via Bluetooth®
• L/R main outs to connect to your PA speakers, power amps or studio monitors
• Aux send allows you to create a personalized monitor or separate zone mix
• Headphone output for critical listening or silent practice

Technical Specifications:

• Sample Rate: 48 Hz
• A/D/A Bit Depth: 24-bit
• System Latency: <2 ms
• Frequency Response: 20 Hz to 20 kHz, ±1 dB
• Residual Noise Floor: –90 dBu (20 Hz – 20 kHz)
• Crosstalk: >80 dB
• Dynamic Range: 90 dB (±3 dB)
• Maximum Levels (1% THD+N) XLR Inputs: –11 dBu
• Maximum Levels (1% THD+N) 1/4" Inputs: +14 dBu
• Maximum Levels (1% THD+N) 1/8" Input: +10 dBu
• Maximum Levels (1% THD+N) Main Out: +14 dBu
• Maximum Levels (1% THD+N) Aux Out: +14 dBu
• Maximum Levels (1% THD+N) Headphone Out: 180 mW into 600 Ohm
• Impedances XLR: 10 kOhm balanced
• Impedances 1/4": > 5 MOhm unbalanced
• Impedances 1/8": 9 kOhm unbalanced
• Impedances Phones output: 10 Ohm unbalanced
• Impedances All other outputs: 100 Ohm unbalanced / 200 Ohm balanced
• Low Cut: Off, 20 Hz – 400 Hz, 12 dB / octave
• Low Shelving: ±12 dB @ 80 Hz
• Mid-Peaking: ±12 dB sweep 100 Hz – 8 kHz
• High Shelving: ±12 dB @ 12.5 kHz
• Compression: Single slider, off to max
• FX: 16 presets
• Output GEQ: 7-Band, ±12 dB, 125, 250, 500, 1k, 2k, 4k, 8k
• Memory Presets: 3
• External Supply Power Requirements: 100 – 240 VAC, 50/60 Hz, Universal Supply, 18VDC, 0.5 Amps
• Operating Temperature: 0 ̊ – 40 ̊C / 32 ̊ – 104 ̊F
• Bluetooth Protocol: 3.0
• Bluetooth Function: Audio Streaming and User Interface Control
• Dimensions: 6.3 x 8.2 x 7.4 " (HxWxD)
• Weight: 3.0 lb

Specs:

• Type: Mixer
• Theme: PA and Sonication
