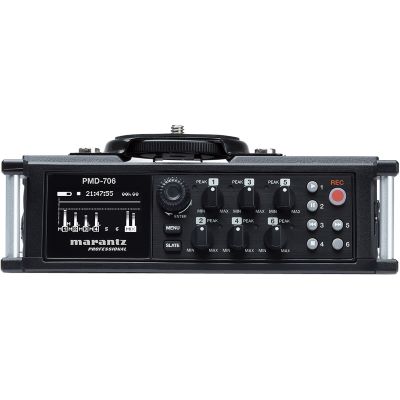

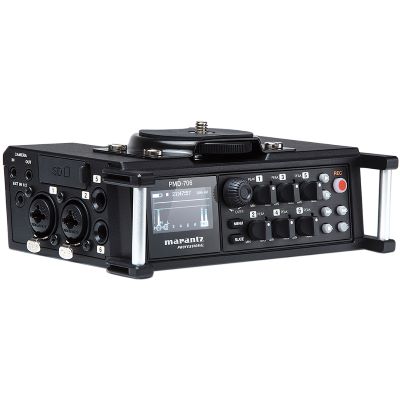

Marantz PMD-706

The PMD-706 by Marantz Professoonel is a 6-channel 24-bit / 96 kHz DSLR audio recorder for film recording. The device enables multi-track recordings, even if only one camera is used. The device has six dedicated balanced inputs, which can be recorded as separate, partially summed or grouped tracks.

Features:

• Battery-powered multi-track recorder for mobile use
• 6-channel studio-quality recording up to 96 kHz / 24-bit
• Recording on SD/SDHC/SDXC cards up to 128 GB

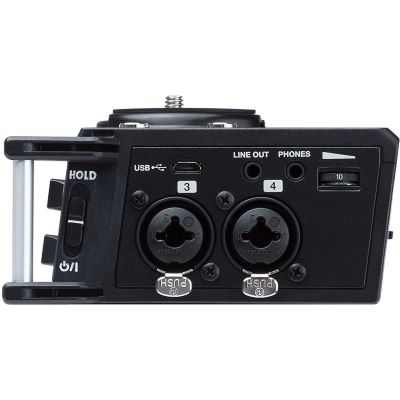

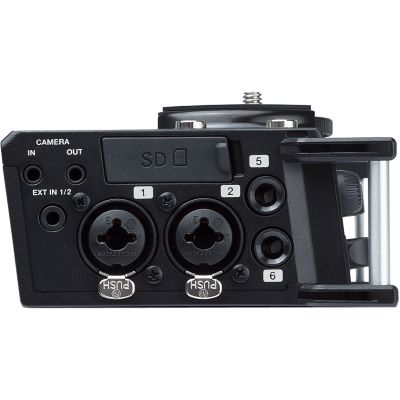

• 4 XLR/jack combination inputs for microphone and line signals
• 2 balanced jack inputs for microphone and line signals
• High resolution discrete microphone preamplifier
• 48 V phantom power for all 6 inputs
• Integrated limiter, M/S microphone decoding and adjustable low-cut filter
• Dual-Recording mode creates additional safety tracks with lower levels
• 3.5 mm stereo jack input for consumer microphones

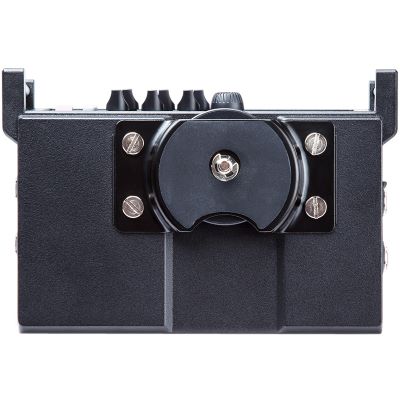

• Direct mounting to DSLR camera

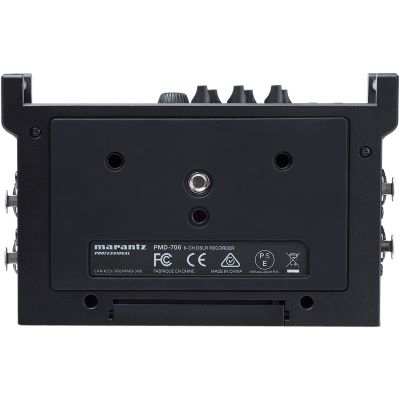

• Integrated tripod mount on the underside of the unit
• slate-function
• Adjustable encryption
• Powered by USB or four AA batteries

Scope of delivery:

• PMD-706
• USB cable
• 2 XLR - jack adapter cable
• manual

Technical data:

• Inputs: 4 XLR/jack combination inputs, two 6.3 mm jack inputs, two 3.5 mm jack inputs
• Input impedance: 2 kΩ (Mic), 10 kΩ (Line, EXT, Cam)
• Maximum input level: 0 dBu (Mic), +20 dBu (Line), +10 dBV (EXT1/2), +6 dBV (Cam)
• Maximum input gain: +63 dB (Mic), +38 dB (EXT1/2)
• Adjustable delay compensation: 0 - 300 ms in 1ms steps
• Phantom power: 48 V / 24 V switchable for inputs 1-4
• Signal Processing: Limiter, Multiband Limiter, Low Cutoff (Off, 50, 80, 120, 180, 220 Hz), Automatic Volume Control
• Outputs: three 3.5 mm jack outputs
• Output impedance: 200 Ω
• Maximum output level: +6 dBV (Line), -24 dBV (Cam)
• File formats: BWF, WAV
• Resolution: 16 Bit, 24 Bit
• Sample rate: 44.1 kHz, 48 kHz, 96 kHz
• Signal-to-noise ratio: >94 dB
• Frequency range: 20 - 20,000 Hz ±1 dB
• Supported SD media: SD card (64 MB to 2 GB), SDHC card (4 to 32 GB), SDXC card (48 to 128 GB)
• Recording time: >32 hours (6-channel, 16-bit/44.1 kHz, 128 GB SDXC card)
• Power supply: 4 x AA batteries or via Micro USB
• Power consumption: <5 W
• Operating time: depending on use and battery type
• Operating temperature: 5 - 60° C
• Humidity: 25 - 85%.
• Housing: robust, reinforced plastic housing
• Dimensions: 164 x 110 x 50 mm
• weight: 0,5 kg

Specs:

• Color: Black
• Line Inputs: 6
• Line Outputs: 2
• Mic Inputs: 4
• digital Input: none
• digital Output: none
• Fader: 0
• Effect Processor: yes
• Set Offer: no
• Headphone Out: yes
• Rack Mountable: no
• Type: Mobile Audio Recorder
• Theme: Recording and Studio
