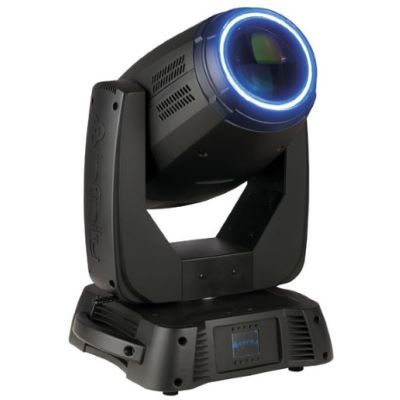

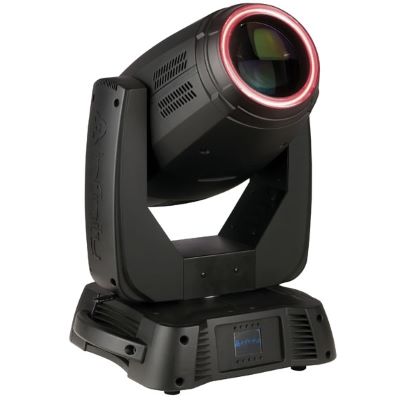

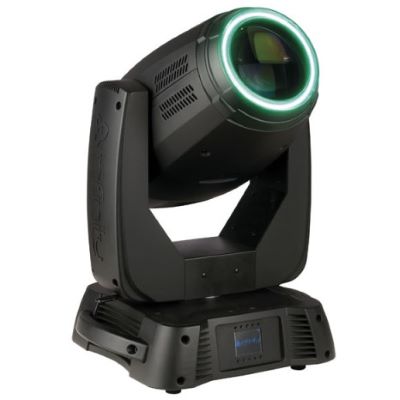

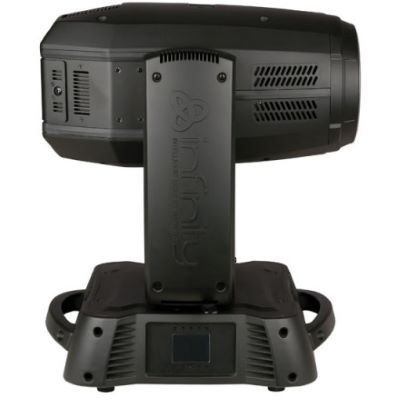

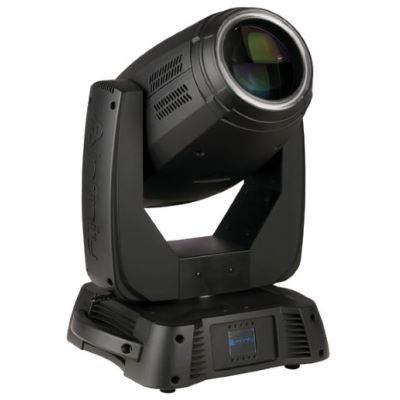

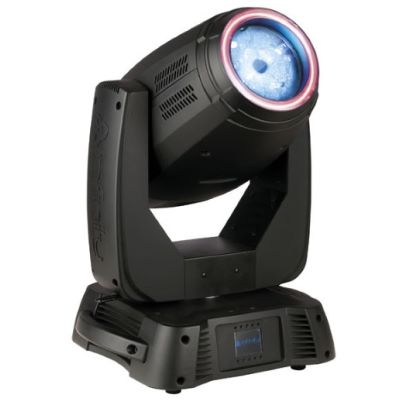

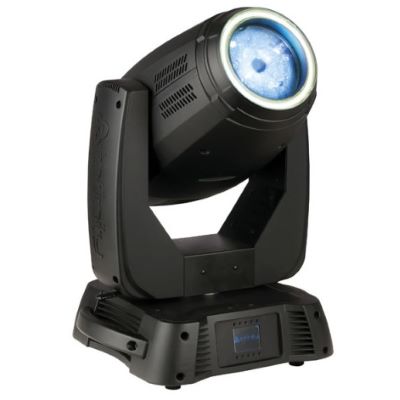

Showtec Infinity iB-16R Beam

The iB-16R offers spotlight, spot and washer effects - a full-featured moving head. He owns apowerful 330W Osram Sirius lamp, making it ideal for even the most demanding lighting applications. can be used without restriction.With its extremely narrow beam angle of 1-4.5° in the Beam mode and 5-19° in spot mode an extremely high power of 111,100 Lux @ 15m.It is equipped with a linear 5-fold prism and an 8-fold prism, which are superimposed on each other. and both can be turned in both directions. The IB-16R is also equipped with 2 gobo wheels and one colour wheel.

Features:

• 111.000 Lux @ 15 meters
• Two prisms with overlay effect
• 2.5° to 8° zoom in beam mode, 5° to 19° zoom in spot mode for different beam sizes
• Two gobo wheels, 1 rotating and 1 static
• autofocus

Technical data lamp:

• Light source: Osram Sirius, 330W, X8, 8000K
• Lamp socket: E20.6
• Beam angle: 1° to 4.5° (beam mode)
• 3° to 10° (Spot mode)
• Field angle: 2.5° to 8° (beam mode)
• 5° to 19° (Spot mode)

Technical data optics:

• Dimmer: 0-100%, mechanical
• Stroboscope: 0-20Hz
• Focus: Motorized
• Zoom: 2.5° to 8° (beam mode)
• 5° to 19° (Spot mode)
• Prism 1: Rotating 8-fold prism
• Prism 2. rotating 5-fold prism
• Frost: Yes
• Gobo wheel 1: 9 + open (9 glass gobos), rotation, interchangeable, indexing, slot-n-lock
• Gobo wheel 2: 14 + open (14 metal gobos), continuous scroll with variable speed.
• Gobo functions: Gobo flow effect, gobo shake.
• Colors: 13 + white, split colors, continuous scroll with variable speed
• Color effects: Split colours, rainbow flow effect

Technical data:

• Input voltage: 100 to 240V AC, 50/60Hz (automatic switching)
• Power consumption: 522W
• Included: Battery, colour display with gravity sensor
• Modes: DMX, Auto, Master/Slave
• Control protocol: DMX512
• Control variants: Advanced 25CH /Basic 18CH
• Color: Black
• Housing: metal & flame retardant plastic

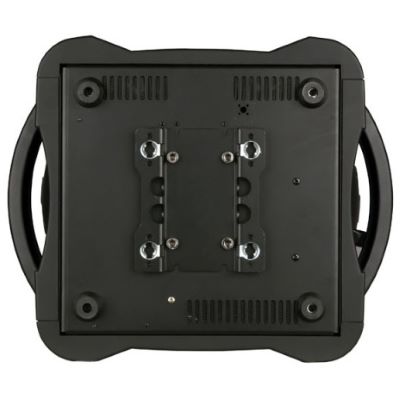

• Mounting: quick-release coupling

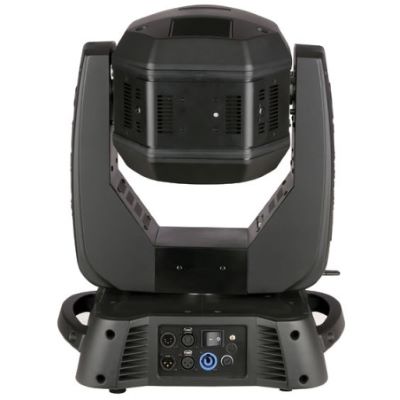

• Connections: XLR data input/output, 3-&5-pin, Powercon input
• Dimensions: 410 x 327 x 638mm
• weight: 25,1kg

Specs:

• Beam: Spot
• Light source: halogenous
• Colour mixing: more than 9 Color Wheels
• Gobo: more than 6, rotating
• Focus: yes, by engine
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (4.7 MB)
