PreSonus StudioLive 16R

With the 16R PreSonus has released another model of the Series III digital rack mixer.

It offers 16 microphone and line inputs, 6 mix outputs and a Mute All switch to mute the sound. of all working channels. A fully parametric 6-bank equalizer is also integrated. Furthermore there is the possibility for a line delay in all inputs and outputs.

Features:

• Series III Digital Rack Mixer / AVB Stagebox
• fully programmable 16/2 digital rack mixer
• 16/8 AVB Stagebox for StudioLive Series III mixing consoles
• high-quality digital converters (24 Bit/48 kHz) with 115 dB dynamic range
• 6 aux sends, 8 filter DCA groups
• 6 mix outputs (balanced TRS jack), 2 main outputs (XLR L/R)
• "Mute All" button for muting all inputs and outputs
• integrated SD card recorder (stereo) for recording the main signal and as a source
• 18x18 USB recording interface, 32x32 AVB recording interface
• Fat channel signal processing: polarity, high pass filter, gate / expander with sidechain, fully parametric 4-band EQ, compressor with sidechain, limiter, incl. vintage plug-ins for EQ and compressor
• Fat Channel can be assigned twice, alternative settings can be saved and recalled (A/B)
• 2 master effect processors incl. vintage reverb plug-ins
• Line delay in all inputs and outputs
• fully parametric 6-band EQ in all outputs, 8 graphic EQs (31-band)
• professional presets plus user memory for fat channel, effects and graphic EQ
• 100 complete scene memories, 8 quick scene memories, 8 mute groups

Technical data:

• Headphone output (6.35mm stereo jack) with volume control

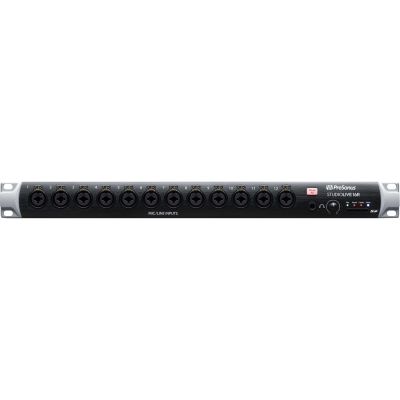

• 16 mic/line inputs (combo jacks with locking)
• Stereo Aux Input (Cinch L/R)
• 16 discrete XMAX Class A preamps, 48 V phantom power

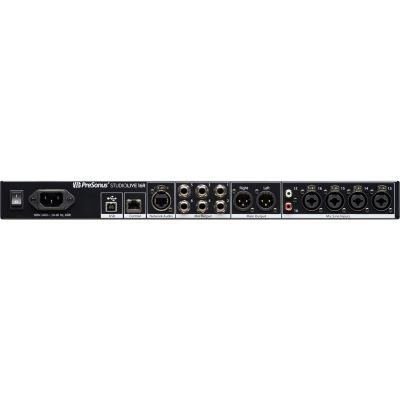

• USB port, Ethernet control port, Ethercon AVB audio network port
• Control software "UC Surface" for OS X, Windows, iPad, Android-Tablet
• Free monitor app "QMix-UC" for iPhone, iPod Touch and Android smartphones incl. recording software "Capture", DAW software "Studio One 3 Artist" and "Studio Magic" plugin suite (for download)
• Dimensions (WDH): 48.3 x 30.5 x 4.5 cm (19", 1U)
• weight: 3,9 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (9.84 MB)
