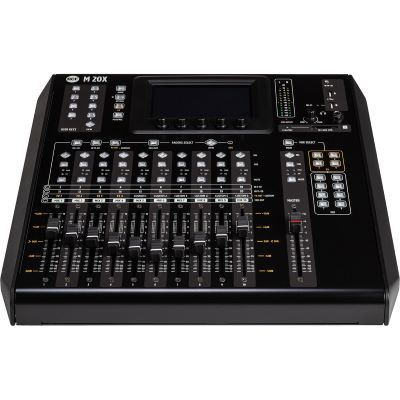

RCF M 20X digital Mixer with Touch-Display

The RCF M 20X is a total-recall capable mixer with 16 high quality remote controlled preamps and 11 motor faders. Despite its compact size, the M 20X is fully equipped with high quality preamps, studio-quality signal processing, WLAN remote control and extensive multi-track recording and playback functions. The mixing console has 20 analog inputs and offers a total of 14 output channels with balanced analog outputs and the AES/EBU digital output.

Features:

• 20 analog inputs
• 16 mic preamps
• 4 line inputs
• 12 balanced outputs + phones
• 20-tracks sd card play/rec
• 24 x 24 CH USB Audio Interface (24-bit/48 kHz)
• 11 motorized Faders
• Smooth User Interface with 5” Touchscreen
• AES digital output

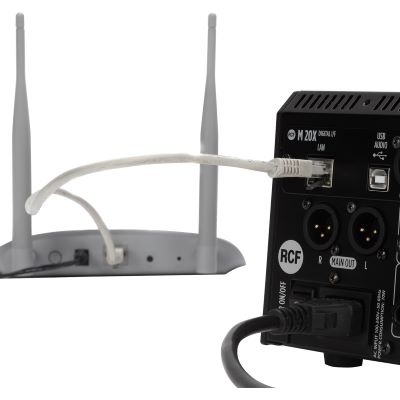

• LAN / WiFi Remote Control

Technical data:

• Microphone inputs (XLR): 8
• Input impedance of microphone: 3.3 kOhm
• Maximum input level: 18 dBu
• 48V phantom power
• Output impedance: 50 Ohm
• Maximum output level: 24 dBu
• 16 Bus
• Internal FX: 4
• Recording/playback: 20 channels
• Housing material: Metal
• Height: 131 mm
• width: 388 mm
• Depth: 428 mm
• weight: 7,9 kg

Specs:

• Type: Mixer
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (4.9 MB)
