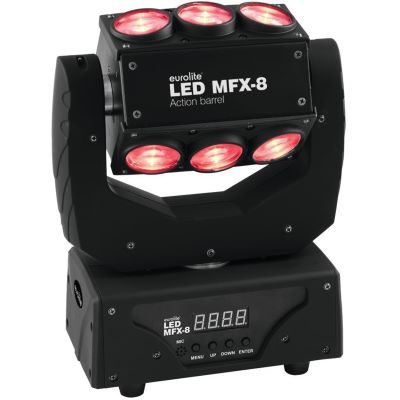

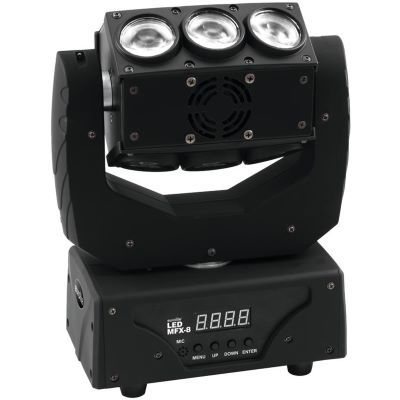

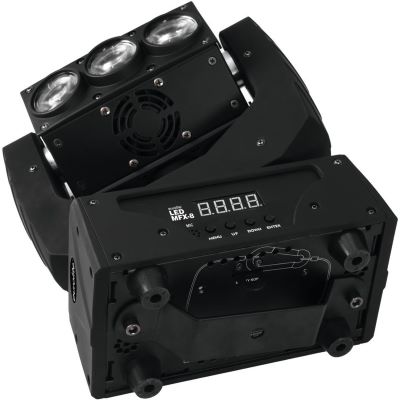

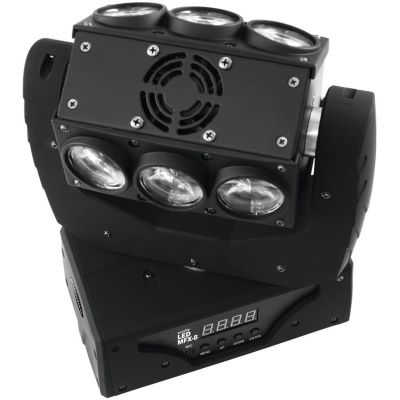

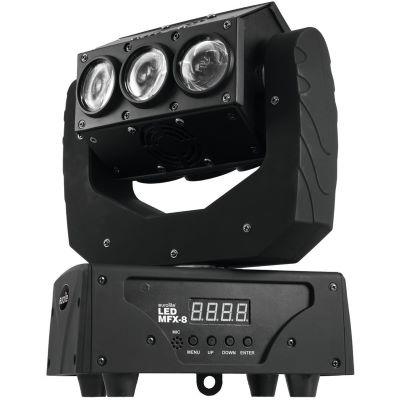

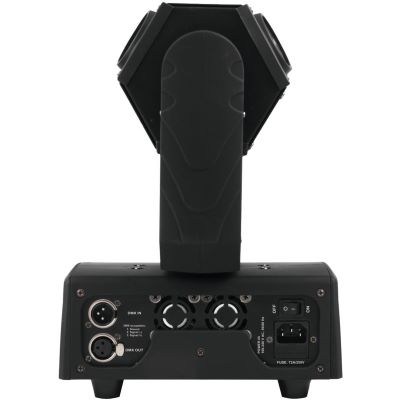

EUROLITE LED MFX-8 Action Barrel

With 10W Quadcolor LED lenses arranged in three rows, the EUROLITE LED MFX-8 Action Barrel is a real highlight for the eyes. The Infinity function allows almost endless TILT movements, which ensures a patchless projection. Those who prefer the strobe effect will get their money's worth with up to 25 flashes per second and a random generator.

Features:

• Beam effect with nine lenses with 10 W Quadcolor LEDs in RGBW colours arranged in three rows
• Compact lightweight
• With Infinity function for endless TILT movement
• Positioning within 630° PAN and 200° TILT
• PAN angle switchable between 630° and 540
• 12 or 22 DMX channels selectable
• Flicker-free projection
• Functions: Color beams, auto mode, music control, color presets, color change, master/slave function, internal programs, infinitely variable RGBW color mixing - each LED row can be controlled individually
• master dimmer
• Strobe effect with 1-25 flashes per second and with variable speed
• Strobe effect via random generator
• Automatic position correction
• Exact positioning through 16-bit resolution of the PAN/TILT movement
• DMX-controlled operation or stand-alone operation with master/slave function possible
• Music control via built-in microphone; sensitivity adjustable
• Addressing and setting via control unit with 4-digit LED display
• Switch-mode power supply technology for mains voltage between 100 and 240 volts
• Ready for connection via cold appliance power cable with earthing contact plug
• DMX512 control possible via any commercially available DMX controller

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz ~
• Total connected load: 130 W
• DMX control channels: 12/22
• DMX512 connector: 3-pin XLR
• Music control: via built-in microphone
• Flash rate: 25 Hz
• Number of LEDs: 9
• LED type: 10-W-QCL, RGBW
• Max. Swivel movement (PAN): 630°.
• Max. Tilting movement (TILT): unlimited
• Dimensions (LxWxHx): 255 x 135 x 325 mm
• weight: 5,5 kg
• shipping weight: 6,65 kg
• Subject to ecodesign: Yes
• Special product: Not intended for room lighting in households.
• Intended use: Lighting for show effects

Specs:

• Beam: Spot
• Light source: LED RGBW
• Colour mixing: LED
• Gobo: none
• Focus: no
• Steuerung DMX: yes
• Type: Moving Head
• Theme: Light and Show
